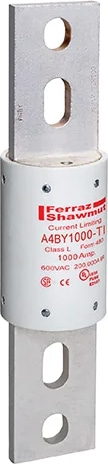

A4BY1000-TI
Official DistributorBy Mersen
SKU
MERA4BY1000TI
Weight
2.041 kg
Fuse A4BY - Class L - Time-Delay 600VAC 300VDC 1000A Blade TI Indicator Amp‑Trap®
Technical Specifications
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 300 V |
| Frequency | 50/60 Hz |
| Ampere Rating | 1000 A |
| ac or dc | AC/DC |
| Fuse Class | Class L |
| Indication System | Yes (TI Indicator) |
| Sell Pack Quantity | 1 EA |
| sell pack weight | 2.1455 kg |
| Body Insulating Material | GMG |
| Product group | Low Voltage UL/CSA Fuses |
| Product Length | 273 mm |
| Sell Pack Width | 88.9 mm |
| Sell Pack Length | 279.4 mm |
| sell pack height | 82.6 mm |
| Speed Characteristic | Time Delay |
| Mounting | Bolted |
| ac max ir breaking capacity | 200 kA |
| Connection Terminal Material | Silver‑Plated Copper |
| Connection Terminal Type | Blade |
| Product Diameter | 63.5 mm |
| ean upc code | 782001939571 |
Why Proax for Mersen A4BY1000-TI?
Proax is the authorized distributor of Mersen A4BY1000-TI. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | A4BY1000TI |
| Pack Size | 1 |
