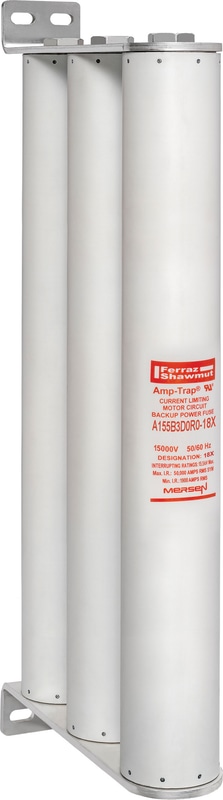

A155B3D0R0-18X
Official DistributorBy Mersen
15.5 kV Bolt-On Mount Motor
Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses are single, double, triple or quadruple barrels 3 inches diameter with end mounts designed for bolting directly to equipment bus or terminal pads
Features
- The Amp-Trap Bolt-in series are UL Recognized
- Bolt-in mounting for direct connection to bus or terminals
- Current-limiting for superior equipment protection
- Metal embossed catalog number and manufacturing date for lasting identification
- Blown-fuse indicator to give positive identification of open fuse
- Amp-Trap: 3" Barrel 2 lb tripped force - 0.50 Inch
Applications
- Short circuit protection of medium voltage motors and motor controllers
| Ac - Dc - Ac Dc | AC |
| Rated Voltage Ac Ul | 15500 V |
| Product Height | 295.4 mm |
| Product Length | 637.5 mm |
| Product Width | 76.2 mm |
| Product Weight | 20.0941 kg |
| Indication System | 1 |
| Indication System Type | Visual Indicator |
| Speed Characteristic | R-Rated |
| Mounting | Bolted |
| Connection Terminal Type | Bolted |
| Connection Terminal Material | Silver-Plated Copper |
| Body Insulating Material | GMG |
