Photoelectric sensor, limited reflective, compact square, 10 to 60mm range, PNP, red LED, timer function, M8-4pin pig-tail connector

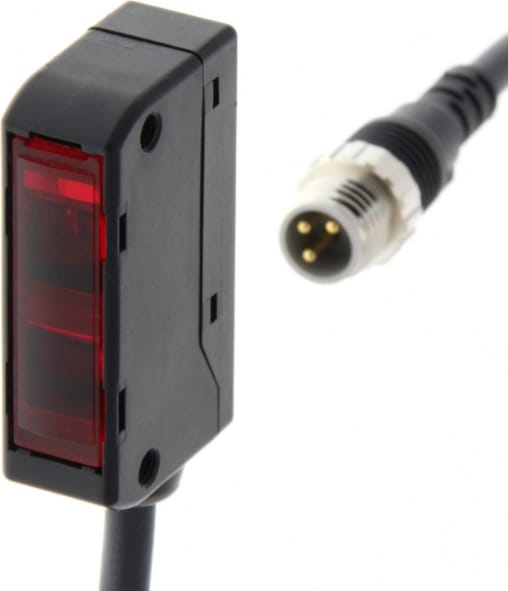

E3S-LS3 Plastic Body Wide Beam Photoelectric Sensor
Photoelectric sensor for structured object detection in plastic housing
The special wide beam and limited-reflective optics of the E3S-LS3 ensures reliable detection of structured objects that have holes or varying heights. This can be used, for example, to detect printed circuit boards (PCBs).
- Wide beam for reliable detection of structured, shiny and irregularly shaped objects
Technical Specifications
| Body Type | Rectangular |
| Sensing Method | Convergent-reflective |
| Output | PNP |
| Max Sensing Distance | 60 mm |
| Connection | M8 4-pin connector |
| Cable Length | 0.3 m |
| Light Source | Red LED |
| Operation | L-ON/D-ON selectable |
| Supply Voltage | 12 to 24 VDC |
| Housing Material | Plastic |
Why Proax for Omron E3S-LS3PWT-M3J 0.3M?
Proax is an authorized distributor of Omron E3S-LS3PWT-M3J 0.3M. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | E3SLS3PWTM3J03M |
| Pack Size | 1 |
