Official DistributorBy Omron
SKU

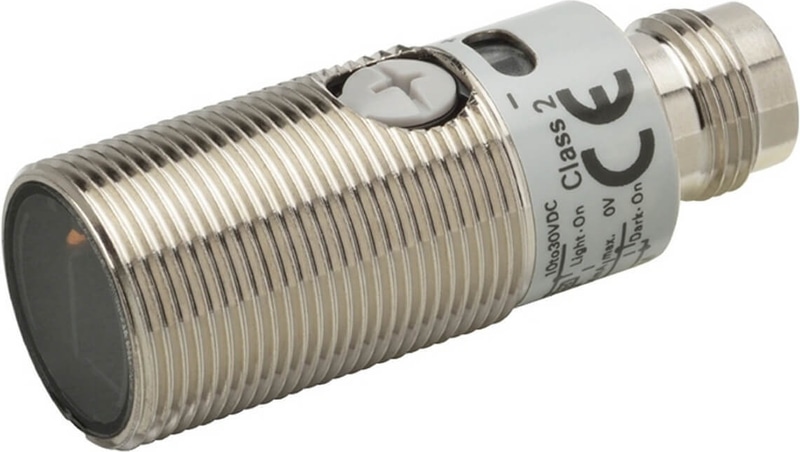

Photoelectric sensor, M18 threaded barrel, metal, red LED, diffuse, 1 m, PNP, Light-ON/Dark-ON, M12 connector
Documents
E3FB Metal Body M18 Barrel Photoelectric Sensor
Metal body M18 barrel mount photoelectric sensor
The E3FB M18 barrel photoelectric sensor family incorporates all standard sensing modes in a compact size. The family uses a robust metal housing to protect the sensor from potential impact from the environment.
- Nickel-plated brass housing
- Compact size with pre-wired or M12 connector options
- IP67, IP69K for water and wash down resistance
- Straight or Radial models in cylindrical M18 housing
- Background suppression, Limited Distance and Transparent detection models available
Compact size and shape
Compact size and shape. Can be installed almost anywhere.
Visible LED light for easy alignment
All models feature bright LED light for easy alignment and long sensing distance.
Background suppression
Background suppression types for the stable detection of different objects with various colours.
High housing protection
Tight IP67/IP69K housing construction for high-level water protection.
Technical Specifications
| Type | Short body |
| Sensing Direction | Straight |
| Body Type | Threaded Cylindrical |
| Sensing Method | Diffuse-reflective |
| Output | PNP |
| Max Sensing Distance | 1 m |
| Connection | M12 4-pin connector |
| Light Source | Red LED |
| Operation | L-ON/D-ON selectable |
| Supply Voltage | 10 to 30 VDC |
| Size | M18 |
| Housing Material | Nickel-Plated Brass |
Accessories
Why Proax for Omron E3FB-DP23?
Proax is an authorized distributor of Omron E3FB-DP23. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | E3FBDP23 |
| Pack Size | 1 |
