E2KQ-X10ME1
Official DistributorBy Omron
SKU
OMRE2KQX10ME1
Proximity sensor, inductive, PTFE body, short, M18, shielded, 6-10mm adjustable, NPN, DC, 2m cable

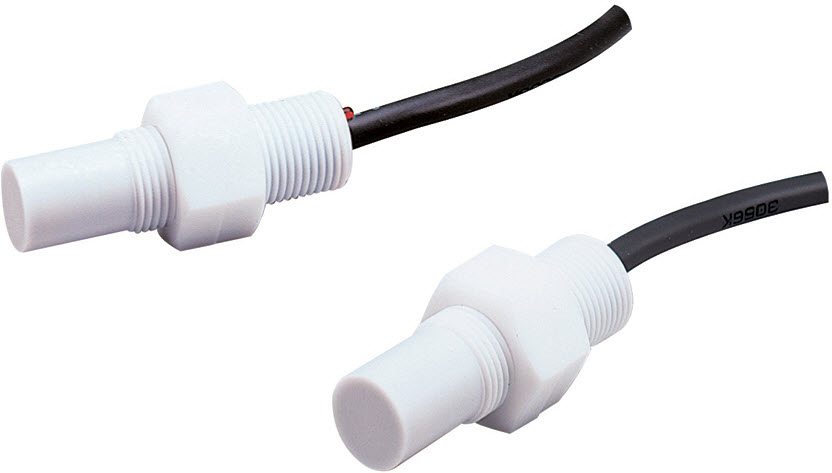

E2KQ-X Chemical Resistant PTFE Coated Capacitive Sensor
PTFE coated M18 unshielded capacitive proximity sensor
The E2KQ-X M18 capacitive proximity sensor allows users to detect metallic and non-metallic materials with adjustable sensitivity all within a PTFE coated body which makes the sensor resistant to damage in the presence of harsh chemicals.
- AC 2-wire & DC 3-wire models
- Available in M12, M18 and M30 sized barrels
- Heat-resistant ABS plastic housing and IP66 enclosure rating
- Non-contact detection of metallic and non-metallic objects including water, oil, glass, plastic and wood
- Detects liquid level inside non-metallic containers
Technical Specifications
| Size | M18 |
| Shielded | Unshielded |
| Connection | PVC cable |
| Output | NPN |
| Operation | NO |
| Supply Voltage | 12 to 24 VDC |
| Case Material | Fluoroplastic resin |
| Threaded Length (mm) | 61.8 |
| Overall length (mm) | 21.8 |
| Mounting | Bracket with 18 mm mounting hole or M18x1.5 threaded hole. |
| Cable Length | 2 m |
Why Proax for Omron E2KQ-X10ME1?
Proax is an authorized distributor of Omron E2KQ-X10ME1. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | E2KQX10ME1 |
| Pack Size | 1 |
