Official DistributorBy Omron
SKU

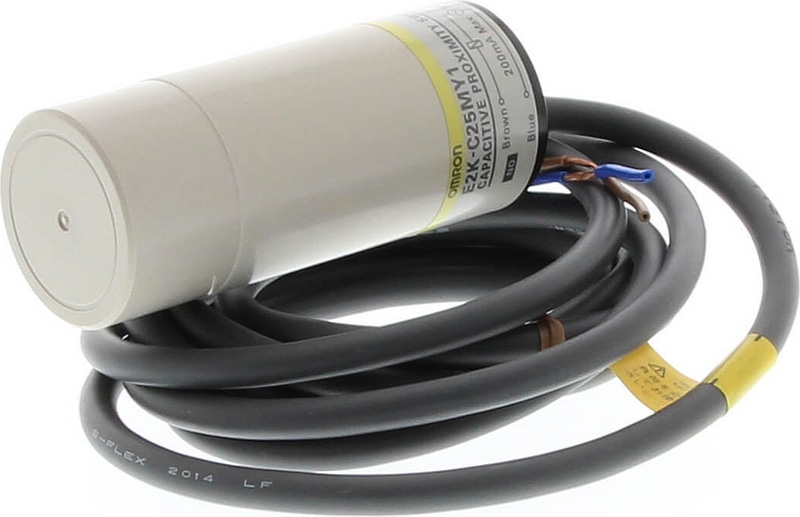

Proximity sensor, capacitive, 34mm dia, unshielded, 25mm, AC, 2-wire, NO, 2m cable
E2K-C Long Distance Adjustable Capacitive Sensor
Long distance capactitive proximity sensor with adjustable sensitivity
The E2K-C enables long distance adjustable detection of metallic and non-metallic materials like wood, oil, and water. The family offers up to 25mm of sensing distance and is available with in DC 3-wire and AC 2-wire configurations.
- Settable detection distance from 3 to 25 mm with multi-turn adjuster
- Non-contact detection of metallic and non-metallic objects including water, oil, glass, plastic and wood
- Detects liquid level inside non-metallic containers
- Reliably detects foamy liquids in sight glass applications
Technical Specifications
| Size | 34 mm |
| Shielded | Unshielded |
| Connection | PVC cable |
| Output | 2 Wire AC |
| Operation | NO |
| Supply Voltage | 100 to 220 VAC |
| Case Material | Heat-resistant ABS |
| Threaded Length (mm) | Smooth Barrel 34 mm dia. |
| Overall length (mm) | Non-threaded, 89mm length |
| Mounting | Bracket, 34 mm opening or sensor well |
| Cable Length | 2 m |
Why Proax for Omron E2K-C25MY1?
Proax is an authorized distributor of Omron E2K-C25MY1. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | E2KC25MY1 |
| Pack Size | 1 |
