Official DistributorBy Omron
SKU
Weight
0.056 kg
Series D4BLK
Guard lock safety-door switch
- A mechanical lock is applied automatically when the Operation Key is inserted. A high level of safety is achieved using a mechanism where the lock is only released when voltage is applied to the solenoid.
- Release protective cover locks using controller signals or push-button switches after the cutting tool stops moving due to inertia.
- The switch contact is opened by a direct opening mechanism (NC contacts only) when the protective cover is opened. Direct opening mechanism that is EN-certified is indicated by a right-pointing arrow on the switch.
Overview
- Conforms to EN (TÜV) standards corresponding to the CE marking
- Certified by UL, CSA and CCC standards
- Auxiliary release key ensures easy maintenance and unlocks the door in the case of a power failure.
- Tough aluminum die-cast body incorporating a switch box with degree of protection satisfying IP67, UL, and CSA TYPE6P, 13
- Equipped with a horizontal and vertical conduit opening
- Models incorporating easy-to-see indicators for monitoring and those using an adjustable Operation Key for a swinging door are available
- The mounting direction of the head can be changed to allow the Operation Key to be inserted from four directions
Connections
Documents
D4BLK

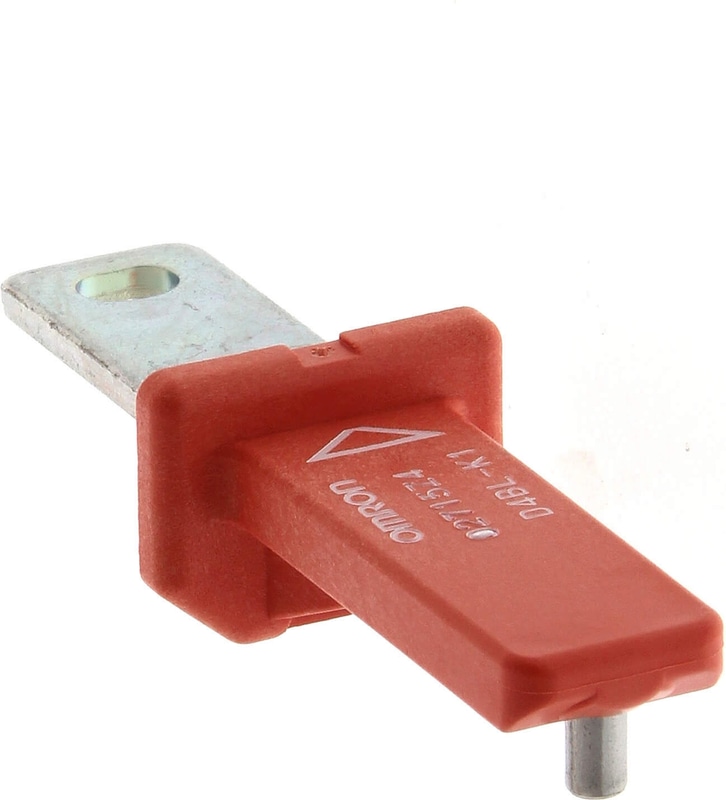

Operating Keys for D4BL Guard Lock Safety Switches
Technical Specifications
| Type | Actuator |
| Special Function | Horizontal |
| Actuator Type | Standard |
| Mounting Orientation | Horizontal |
Why Proax for Omron D4BL-K1?
Proax is an authorized distributor of Omron D4BL-K1. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | D4BLK1 |
| Pack Size | 1 |
