Official DistributorBy ABB
SKU
MPN
1SCA022400R9910
Weight
0.508 kg

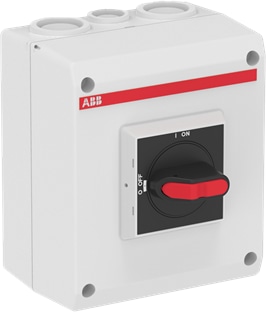

Safety switch, 3-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Technical Specifications
Dimensions
| Product Net Width | 130 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.453 kg |
Technical
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 32 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 32 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 32 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 16 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 16 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 10 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 7.5 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 7.5 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 7.5 kW |
| Conventional Thermal Current (Ithe) | Fully Enclosed 40 A |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 0.705 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W |
| Pollution degree | 3 |
| Handle color | Black |
| Handle Type | Selector handle |
| Position of Line Terminals | Top In - Bottom Out |
| Standards | IEC 60947-1, -3 |
| Number of Poles | 3 |
| Neutral Type | Fixed neutral |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm² |
| Connecting Capacity Main Circuit | Screw Clamp / PE Terminal 2pc,1.5 ... 10 mm² |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Wire Stripping Length | 10 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Cable Entry Position | Top and/or Bottom |
| Cable Outlets Per Side | 2xM25+M16 / 2xM25+M16 |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Impact Resistance Rating | Housing IK08 |
| Enclosure Material | Plastic |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Position of Neutral Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Tightening torque | Main Circuit 0.8 N·m |
Technical UL/CSA
| Wire Stripping Length | 10 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening torque | Main Circuit 0.8 N·m |
