CMS-100S8
Official DistributorBy ABB
SKU
ABBCMS100S8
MPN
2CCA880124R0001
Weight
0.014 kg

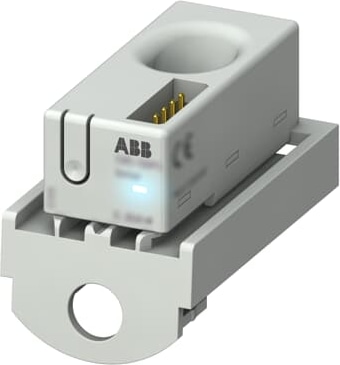

CMS-100S8 18 mm - Solid-Core Sensor - 80A
Technical Specifications
ABB EcoSolutions
| Environmental Product Declaration - EPD | 9AKK108470A0921 |
Technical
| Product Compatibility | SCU100 & SCU200 |
| Rated Primary Current (Ipn) | 80 A |
| Communication interface | InSite bus(Flat cable) |
| Accuracy | 0.5% FS |
| Measuring Range | 0.1…80 A |
| Number of Inputs | Primary 1 |
| Sensor Type | Solid-core (18 mm) |
| Output | Other |
Electrical
| Rated Operational Voltage | 690 V AC |
| Rated Operational Voltage | 1500 V DC |
| Frequency (f) | Rated Current 50 Hz |
| Power Consumption (@Pcons) | 0.27 W |
Dimensions
| Product Net Width | 26.5 mm |
| Product Net Height | 31.8 mm |
| Product Net Depth / Length | 45.5 mm |
| Product Net Weight | 14 g |
| Bore Diameter | 10 mm |
Engineering
| EPLAN Data | 9AAC181184_EPLAN |
Installation
| Instructions and Manuals | 9AKK106930A6241 |
| Mounting Type | Surface Mounting |
Why Proax for ABB CMS-100S8?
Proax is an authorized distributor of ABB CMS-100S8 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | CMS100S8 |
| Pack Size | 1 |
