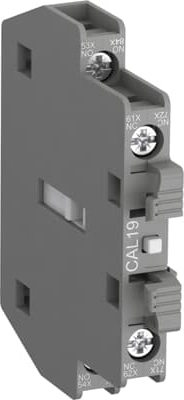

CAL19-11B
Official DistributorBy ABB
SKU
ABBCAL1911B
MPN
1SFN010820R3311
Weight
0.04 kg
Auxiliary contact block for contactors AF116…AF370
Technical Specifications
Supplier Information - USINY
| Lead Time | 21 day |
| Made to Order | No |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | USSVCEXPU |
| Warranty Return | Product under warranty must be returned |
Dimensions
| Product Net Width | 79 mm |
| Product Net Depth / Length | 14.9 mm |
| Product Net Height | 67.3 mm |
| Product Net Weight | 0.04 kg |
Technical
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Rated Operational Voltage | Auxiliary Circuit 24 ... 690 V |
| Power Loss | at Rated Operating Conditions per Pole 0.15 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Solid 1x 1 ... 4 mm² |
| Connecting Capacity Auxiliary Circuit | Solid 2x 1 ... 4 mm² |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Degree of Protection | IP20 |
| Recommended Screw Driver | Auxiliary Circuit 1 x 5.5 |
| Recommended Screw Driver | Auxiliary Circuit Pozidriv 2 |
| Tightening torque | Auxiliary Circuit 1 N·m |
| Terminal Type | Screw Terminals |
| Suitable for | AF116 |
| Suitable for | AF140 |
| Suitable for | AF146 |
| Suitable for | AF190 |
| Suitable for | AF205 |
| Suitable for | AF265 |
| Suitable for | AF305 |
| Suitable for | AF370 |
| Suitable for | AF116B |
| Suitable for | AF140B |
| Suitable for | AF146B |
| Suitable for | AF190B |
| Suitable for | AF205B |
| Suitable for | AF265B |
| Suitable for | AF305B |
| Suitable for | AF370B |
| Suitable for Product Class | Block Contactors |
| Product Name | Auxiliary Contact Block |
Why Proax for ABB CAL19-11B?
Proax is an authorized distributor of ABB CAL19-11B and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | CAL1911B |
| Pack Size | 1 |
