CAF6-20E
Official DistributorBy ABB
SKU
ABBCAF620E
MPN
GJL1201330R0006
Weight
0.02 kg

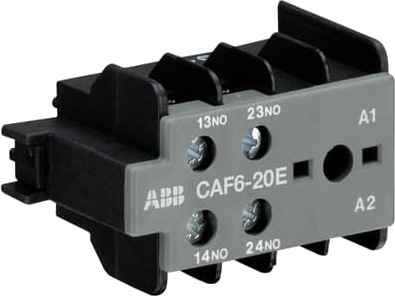

The CAF6-20E is an auxiliary contact for front mounting with 2 auxiliary contact and screw terminals.
Technical Specifications
Dimensions
| Product Net Width | 47.5 mm |
| Product Net Depth / Length | 26.5 mm |
| Product Net Height | 29 mm |
| Product Net Weight | 0.02 kg |
| Dimension Diagram | GJL1200446F0001 |
Technical
| Number of Main Contacts NO | 0 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-1 |
| Standards | IEC/EN 60947-4-1 |
| Standards | IEC/EN 60947-5-1 |
| Standards | UL 60947-1 |
| Standards | UL 60947-4-1 |
| Standards | IEC 60335-2-40 A2L |
| Rated Operational Voltage | Auxiliary Circuit 690 V AC |
| Rated Operational Voltage | Auxiliary Circuit 250 V DC |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Rated Frequency (f) | Auxiliary Circuit 60 Hz |
| Rated Frequency (f) | Auxiliary Circuit DC |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit 6 A |
| Rated Operational Current AC-15 (Ie) | (24 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A |
| Rated Operational Current AC-15 (Ie) | (380 / 400 V) 3 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1.5 A |
| Rated Operational Current DC-13 (Ie) | (110 V) 0.4 A |
| Rated Operational Current DC-13 (Ie) | (220 / 240 V) 0.04 A |
| Short-Circuit Protective Devices | gG Type Fuses 10 A |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Maximum Electrical Switching Frequency | (AC-15) 600 cycles per hour |
| Maximum Electrical Switching Frequency | (DC-13) 600 cycles per hour |
| Minimum switching capacity | 17 V |
| Minimum switching capacity | 5 mA |
| Power Loss | at Rated Operating Conditions per Pole 0.27 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 1 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible 1/2x 1 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Rigid 1/2x 1 ... 4 mm² |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Degree of Protection | IP20 |
| Tightening torque | Auxiliary Circuit 0.8 ... 1.1 N·m |
| Terminal Type | Screw Terminals |
| Suitable for | B6-40-00 |
| Suitable for | BC6-40-00 |
| Suitable for | B7-40-00 |
| Suitable for | BC7-40-00 |
| Suitable for | VB6-40-00 |
| Suitable for | VBC6-40-00 |
| Suitable for | VB7-40-00 |
| Suitable for | VBC7-40-00 |
| Suitable for | VB6A-40-00 |
| Suitable for | VBC6A-40-00 |
| Suitable for | VB7A-40-00 |
| Suitable for | VBC7A-40-00 |
| Suitable for Product Class | Mini Contactors |
| Product Name | Auxiliary Contact |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 600 V AC |
| General Use Rating UL/CSA | (600 V AC) 5 A |
| Connecting Capacity Auxiliary Circuit UL/CSA | Stranded 1/2x 22-10 AWG |
| Contact Rating UL/CSA | A600 |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
