AL 350 N
Official DistributorBy ABB
SKU
ABBAL350N
MPN
7TAA262020R0052
Weight
0.35 kg

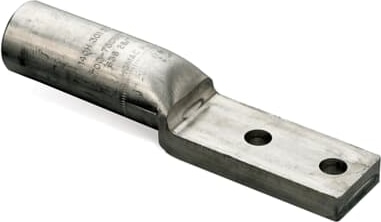

Aluminum Two-Hole NEMA Lugs - straight lug, 336.4 - 350 kcmil AL-CU, ACSR 266.8 (26/7) and 336.4 (18/1), installing dies 96, 299, 655, 1 1/8-1, 705, 13A. Length 6-9/16 inch. Pad 1-35/64 inch wide x 3-9/16 inch long x 23/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch centers. Barrel 2-3/16 inch x 1-7/64 inch Outside Diameter. Oxide Inhibitor. Brown Cap.
Technical Specifications
Additional Information
| Application | General purpose lugs for Aluminum and Copper terminations. |
| Brand / Label | Homac |
| Connection Type | Compression |
| Effective Date | 20080619 |
| Material | Aluminum |
| Product Name | Terminals, electrical splices and electr ical couplings; wafer probers |
Additional Information
| Product type | Compression Lug Two Hole |
| Size | Length 6-9/16 inches |
| Special Functions | Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification. |
| Standards | ANSI C119.4 |
| Wire Size | 350 kcmil |
Why Proax for ABB AL 350 N?
Proax is an authorized distributor of ABB AL 350 N and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | AL350N |
| Pack Size | 1 |
