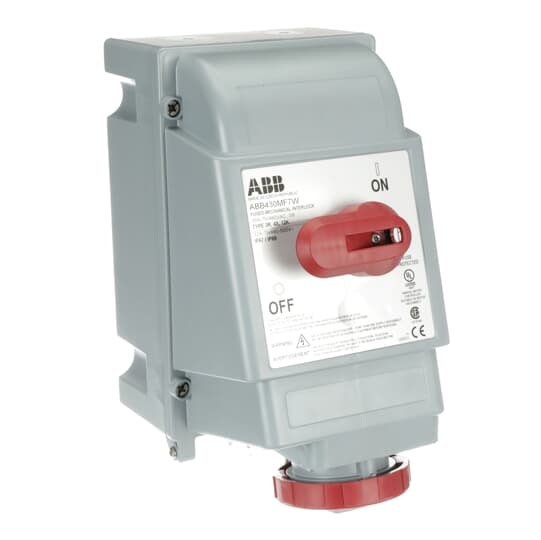

ABB430MF7W
Official DistributorBy ABB
SKU
ABBABB430MF7W
Weight
2.753 kg
Mechanical Interlock Fused 30A 3P4W 3phase 480V Clock Position Of Grounding Contact 7 hour Color code Red, UL/CSA approved and CE compliant
Technical Specifications
Technical
| Standards | UL 1682, 1686 / CSA C22.2 No. 182.1-13 |
| Function | Switched interlocked socket outlets |
| Suitable for Product Class | IEC Industrial Plugs and Sockets |
| Rated Voltage (Ur) | 480 V |
| Rated Current (In) | 30 A |
| Frequency (f) | 50 Hz, 60 Hz |
| Mounting Holes | 130x225 |
| Number of Poles | 4 |
| Tightening torque | WireClamp1.2 N·m |
| Connection Type | Screw |
| Protection Type | Watertight |
| Type of Fastening | Inner Lying Mounting |
| Clock Position Of Grounding Contact | 7 hour |
| Enclosure Material | Thermoplastic polyester (PBT) |
| Housing Material | Thermoplastic (PBT) |
| Material | Plastic |
| Additional Information | 3P+E |
| Recommended Screw Driver | PH2 |
| Cable Entry Position | Other |
| Model Number | Surface mounted (plaster) |
| RAL Number | RAL 7001 - Silver Grey |
| Color | Red |
| Cable Cross-Section | 2.5 ... 10 mm² |
Environmental
| Ambient Temperature | -25 ... 40 °C |
| Degree of Protection | IP67 |
| RoHS Status | Following EU Directive 2011/65/EU |
| SCIP | 596db95a-ce7d-4306-ba18-e94820ec01ab Czech Republic (CZ) |
Technical UL/CSA
| Tightening Torque UL/CSA | 10.6 in·lb |
Dimensions
| Product Net Width | 160 mm |
| Product Net Height | 103 mm |
| Product Net Depth / Length | 307 mm |
| Product Net Weight | 0.8 kg |
