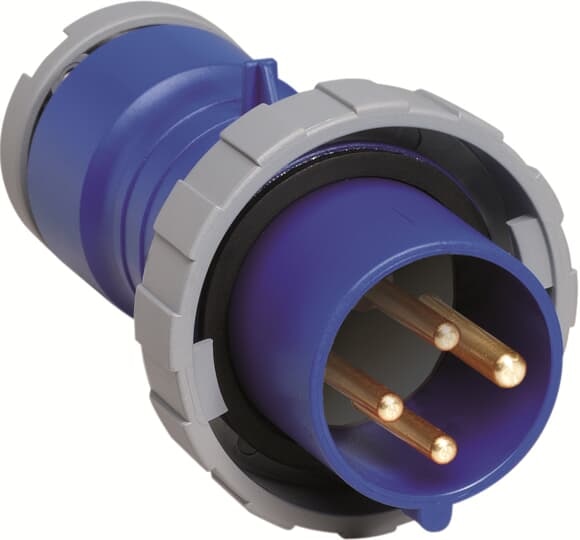

Buy ABB ABB430P9W

Official Distributor

SKU

Weight

0.408 kg

IEC Plug 30A 3P4W 3phase 250V Clock Position Of Grounding Contact 9 hour Color code Blue, UL/CSA approved and CE compliant

Technical Specifications

Technical

Standards	UL 1682, 1686 / CSA C22.2 No. 182.1-13
Function	Plug
Suitable for Product Class	IEC Industrial Plugs and Sockets
Rated Voltage (Ur)	200 ... 250 V
Rated Current (In)	30 A
Frequency (f)	50 Hz, 60 Hz
Number of Poles	4
Plug Angle	Straight
Tightening torque	WireClamp1.2 N·m
Connection Type	Screw
Protection Type	Watertight
Clock Position Of Grounding Contact	9 hour
Enclosure Material	Thermoplastic polyester (PBT)
Housing Material	Thermoplastic (PBT)
Material	Plastic
Additional Information	3P+E
Recommended Screw Driver	PH2
Cable Entry Position	Anti-kink sleeve
RAL Number	RAL 7001 - Silver Grey
Color	Blue
Cable Cross-Section	2.5 ... 6 mm²

Environmental

Ambient Temperature	-25 ... 40 °C
Degree of Protection	IP67, IP69
RoHS Status	Following EU Directive 2011/65/EU
SCIP	4620befc-6ebf-462e-8cc7-a433a9515ae6 Czech Republic (CZ)

Technical UL/CSA

Tightening Torque UL/CSA

10.6 in·lb

Dimensions

Product Net Width	94 mm
Product Net Height	94 mm
Product Net Depth / Length	174 mm
Product Net Weight	0.22 kg
