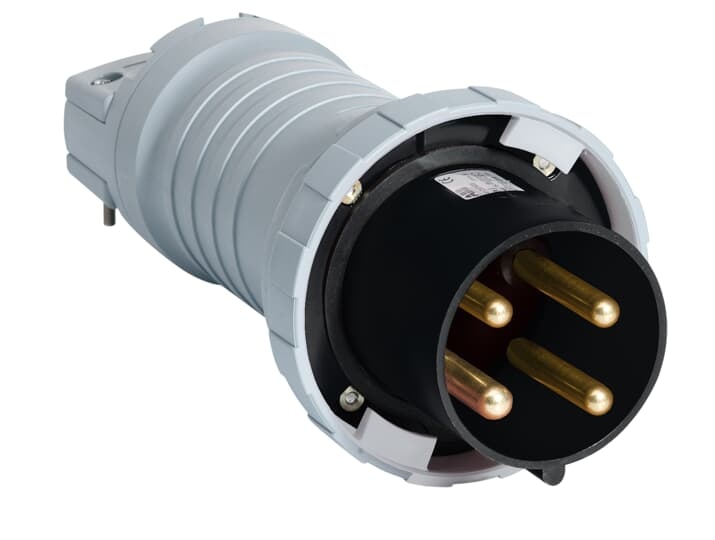

ABB4100P12W
Official DistributorBy ABB
SKU
ABBABB4100P12W
Weight
1.537 kg
IEC Plug 100A 3P4W 125/250V Clock Position Of Grounding Contact 12 hour Color code Orange, UL/CSA approved and CE compliant
Technical Specifications
Technical
| Standards | UL 1682, 1686 / CSA C22.2 No. 182.1-13 |
| Function | Plug |
| Suitable for Product Class | IEC Industrial Plugs and Sockets |
| Rated Voltage (Ur) | 125/250 V |
| Rated Current (In) | 100 A |
| Frequency (f) | 50 Hz, 60 Hz |
| Number of Poles | 4 |
| Plug Angle | Straight |
| Tightening torque | WireClamp5.6 N·m |
| Connection Type | Screw |
| Protection Type | Watertight |
| Clock Position Of Grounding Contact | 12 hour |
| Enclosure Material | Thermoplastic polyester (PBT) |
| Housing Material | Thermoplastic (PBT) |
| Material | Plastic |
| Additional Information | 3P+E |
| Recommended Screw Driver | PH2 |
| Cable Entry Position | Anti-kink sleeve |
| RAL Number | RAL 7001 - Silver Grey |
| Color | Orange |
| Cable Cross-Section | 16 ... 50 mm² |
Environmental
| Ambient Temperature | -25 ... 40 °C |
| Degree of Protection | IP67, IP69 |
| RoHS Status | Following EU Directive 2011/65/EU |
| SCIP | ddd466b7-804f-4ce5-9e14-30aaf67d4b58 Czech Republic (CZ) |
Technical UL/CSA
| Tightening Torque UL/CSA | 50 in·lb |
Dimensions
| Product Net Width | 127 mm |
| Product Net Height | 127 mm |
| Product Net Depth / Length | 325 mm |
| Product Net Weight | 1.4 kg |
Why Proax for ABB ABB4100P12W?
Proax is an authorized distributor of ABB ABB4100P12W and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
