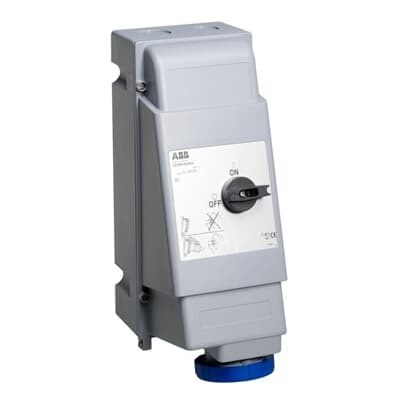

ABB4100MB9W
Official DistributorBy ABB
SKU
ABBABB4100MB9W
Weight
0.004 kg
Mechanical Interlocked Breaked 100A 3P4W 3ph 250V Clock Position Of Grounding Contact 9 hour Color code Blue, UL/CSA approved and CE compliant
Technical Specifications
Technical
| Standards | UL 1682, 1686 / CSA C22.2 No. 182.1-13 |
| Function | Switched interlocked socket outlets |
| Suitable for Product Class | IEC Industrial Plugs and Sockets |
| Rated Voltage (Ur) | 200 ... 250 V |
| Rated Current (In) | 100 A |
| Frequency (f) | 50 Hz, 60 Hz |
| Mounting Holes | 378x145, 128x145 |
| Number of Poles | 4 |
| Connection Type | Screw |
| Protection Type | Watertight |
| Type of Fastening | Inner Lying Mounting |
| Clock Position Of Grounding Contact | 9 hour |
| Enclosure Material | Thermoplastic polyester (PBT) |
| Housing Material | Thermoplastic (PBT) |
| Material | Plastic |
| Additional Information | 3P+E |
| Recommended Screw Driver | PH2 |
| Cable Entry Position | Other |
| Model Number | Surface mounted (plaster) |
| RAL Number | RAL 7001 - Silver Grey |
| Color | Blue |
| Cable Cross-Section | 16 ... 70 mm² |
Environmental
| Ambient Temperature | -25 ... 40 °C |
| Degree of Protection | IP67 |
| RoHS Status | Following EU Directive 2011/65/EU |
Dimensions
| Product Net Width | 175 mm |
| Product Net Height | 241 mm |
| Product Net Depth / Length | 408 mm |
| Product Net Weight | 5.5 kg |
