5021110
Official DistributorSKU
PHX5021110
MPN
A/U CM
Weight
0.865 kg

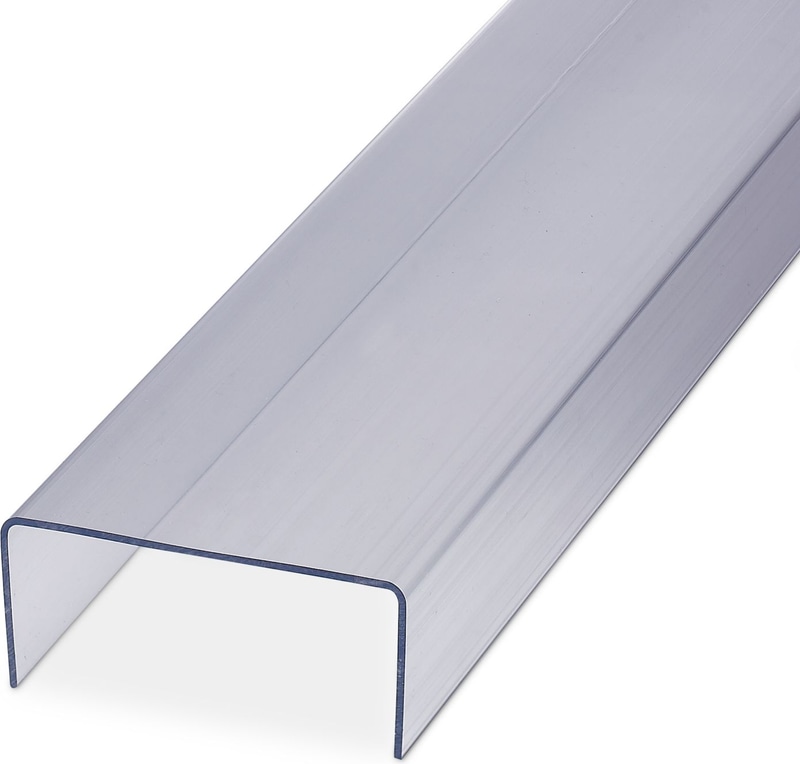

A/U CM - Cover profile
U profile cover, for covering terminal strips, internal dimensions: 100 x 40 mm, 2 mm thick, produced according to length specifications, additionally required: 2 E/UK end brackets or E/U end clips and 2 VAH cover brackets, maximum supply length: 2 m
- Large-surface labeling with AP-ES insert strips
- Cover profiles provide protection against unauthorized actuation of terminal strips
Technical Specifications
Dimensions
| Width | 100 mm |
| Height | 42 mm |
| Material strength | 2.00 mm |
Material specifications
| Color | transparent |
| Material | Polycarbonate PC |
| Flammability rating according to UL 94 | HB |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 115 °C |
Accessories
Why Proax for Phoenix Contact 5021110?
Proax is an authorized distributor of Phoenix Contact 5021110 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
