USGCC3I
Official DistributorBy Mersen
SKU
MERUSGCC3I
Weight
0.195 kg

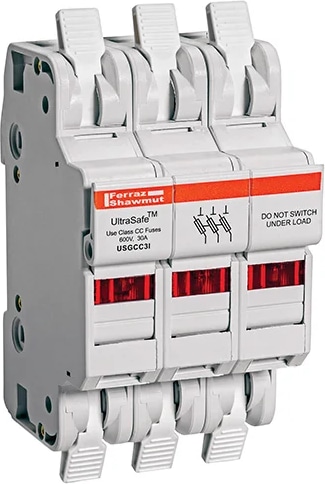

Fuse Holder UltraSafe™ 600VAC 600VDC Class CC 30A 3‑Pole LED Cage Clamp IP20
Technical Specifications
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 600 V |
| Frequency | 50/60 Hz |
| Ampere Rating | 30 A |
| ac or dc | AC/DC |
| Fuse Class | Class CC |
| Short Circuit Current Rating Sccr | 200 kA |
| Indication System | Yes (LED) |
| Number of Poles | 3-Pole |
| Wiring Range | Cu #6-14 |
| fuse installation method | Clip-in |
| Max Fuse Rating | 30 A |
| Installation Mounting | DIN Rail |
| product dimensions/width | 51.8 mm |
| product dimensions/length | 104.9 mm |
| product dimensions/height | 55.1 mm |
| Sell Pack Quantity | 4 EA |
| sell pack weight | 0.8165 kg |
| Body Insulating Material | Glass Filled Polycarbonate |
| RoHS Compliant | Yes |
| Product group | Fuse Holders |
Why Proax for Mersen USGCC3I?
Proax is the authorized distributor of Mersen USGCC3I. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 4 |
