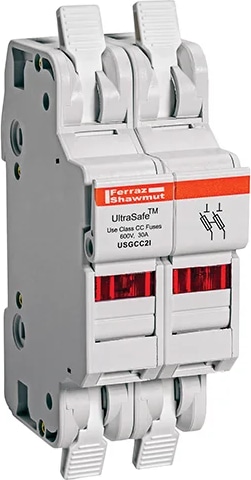

UltraSafe™ USGCC - Class CC Fuse Holders
Mersen’s USGCC series fuse holders deliver the ultimate ease-of-use, time (labor) saving and reliable solution available in the marketplace. Mersen is the first manufacturer to offer screw-less, spring pressure, wire termination technology into a power fuse holder, delivering the best of both technologies to its customers. Now you can experience the combined benefits of safety, ease-of-use, labor savings and reliability of UltraSafe fuse holders and spring pressure technology.
Features
- • Equipped with industry proven, patented WAGO CAGE CLAMP® technology (over 25 years of field experience and acceptance)
- • Reduce wire installation time by up to 75%
- • Highly reliable, maintenance free wire contact
- • Secure, vibration proof, corrosion resistant, temperature cycling resistant, cost saving wire connection
- • Quick, tool-free, easy fuse change-outs
- • IP20 finger-safe protection
- • Option visual blown fuse indicator
- • DIN-rail mounting
- • Compact footprint
- • Environmentally conscious, RoHS compliant and lead free *USGCC use with Class CC Fuses: ATDR, ATQR, ATMR
Applications
- All circuits up to 750VAC / 1000VDC for power control, power distribution and power electronics
- Non-load disconnect
| Ampere Rating | 30 A |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 600 V |
| Product Height | 55.1 mm |
| Product Length | 104.9 mm |
| Product Width | 34.5 mm |
| Product Weight | 0.127 kg |
| Fuse Class | Class CC |
| Fuse Type Class | Class CC |
| Indication System | 1 |
| Indication System Type | LED |
| Max Fuse Rating | 30 A |
| Installation Mounting | DIN Rail |
| Number of Poles | 2-Pole |
| Wire Connections | Cage Clamp |
| Wiring Range | Cu #6-14 |
| Short Circuit Current Rating Sccr | 200 kA |
