G331137
Official DistributorBy Mersen

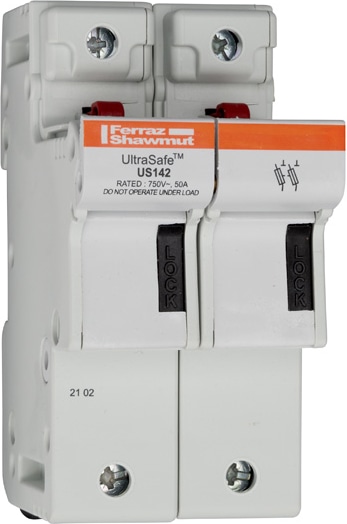

UltraSafe™ US14, Modular fuse-holders
The innovative and comprehensive UltraSafe™ range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. UltraSafe™ range is made of tough and durable thermoplastic or thermoset material.
Features
- Finger safe
- Degree of protection: IP20
- Optional visual blown fuse indicator & microswitch
- DIN rail mounting
- Modular design
- Lockable
- Multi-pole assembly kit available
- Sealable in closed and open position
- Plastic material UL94V2 mini
- Flame retardant materials with glow wire flammability index to 960°C
Applications
- All circuits up to 750VAC for protection of motors,
- transformers, low voltage distribution, control circuits
- Non-load operation
| Ampere Rating | 50 A |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 800 V |
| Rated Voltage Ac Iec | 750 V |
| Rated Voltage Dc Ul | 1000 V |
| Rated Voltage Dc Iec | 750 V |
| Product Height | 110.8 mm |
| Product Length | 76.5 mm |
| Product Width | 53 mm |
| Product Weight | 0.2833 kg |
| Fuse Construction Size | 14x51 |
| Indication System | 0 |
| Max Fuse Rating | 50 A |
| Installation Mounting | DIN rail acc. EN 60715 |
| Connection Terminal Type | Clip |
| Connection Terminal Material | Tin-Plated Copper |
| Number of Poles | 2-Pole |
| Wire Connections | Pressure Plate |
| Wiring Range | #2 - #14 |
| Short Circuit Current Rating Sccr | 100 kA |
