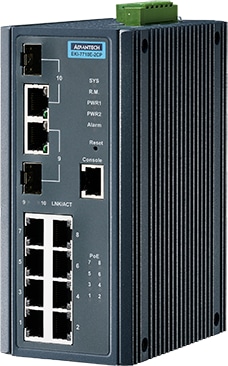

The EKI-7710E-2CP/2CPI supports eight Power over Ethernet (PoE ) ports and two Gigabit combo ports. It can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7710E series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7710E series is equipped with X-Ring which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability.
Features
- 8 x IEEE 802.3 af/at PoE Fast Ethernet ports + 2 x Gigabit Copper/SFP combo ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
- Dual 24~48 V DC power input and 1 relay output
Documents
Technical Specifications
Certification
| Ethernet Standard | IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at |
| Safety | UL60950, UL 508 |
| EMI | CE, FCC Class A |
| EMC | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
Environment
| Temperature (Operating Range) | -10 ~ 60°C (14 ~ 140°F) |
| Temperature (Storage Range) | -40 ~ 85°C (-40 ~ 185°F) |
| Relative Humidity | 10~95% |
Ethernet Communication
| RJ-45 Port Connector Type | 8 x RJ-45 + 2 x RJ-45/SFP combo ports |
| RJ-45 Transmission Speed | 10/100 Mbps ; 10/100/1000 Mbps |
| RJ-45 Transmission Distance | 100 m |
| Fiber Transmission Distance | Up to 110 km |
Interface
| Port Number | 10 |
MTBF
| Time | 858,835 hours |
| Method | Telcordia(Relax), GB |
Mechanism
| Dimensions (W x H x D) | 74 x 152 x 105 mm (2.91 x 5.98 x 4.13) |
| IP Rating | IP30 |
| Enclosure (Metal) | Metal |
| Weight | 1.2 kg |
| Mounting | DIN-rail, Wall |
PoE Information
| PoE Port Number | 8 |
Power
| Power Input (DC) | 24 ~ 48 VDC |
| Power Operating Current | 0.25A @ 48VDC (system) |
| Power consumption | 12.1W (system) |
| Power Connector Type | 6-pin removable screw terminal (power & relay) |
Switch Properties
| MAC Table Size | 8K |
| Packet Buffer Size | 4.1M bit |
| Switch Fabric Speed | 5.6Gbps |
| Jumbo Frame | 9,216 bytes |
Warranty
| Warranty Period | 5 years |
