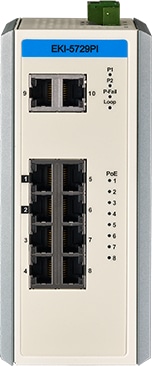

The EKI-5729PI switches support PoE on ports 1-8. The switch is Power Source Equipment. It is the world’s first convergence switches for process control and IT networking management. It uses Modbus/TCP to communicate with SCADA software and SNMP to communicate with the Networking Management System.
Features
- Full Gigabit Ethernet ports and comply with IEEE
- 802.3af/at PoE standard
- Communicates with SCADA software via Modbus/TCP
- Communicates with NMS (Networking management system) via SNMP
- Port-based QoS for deterministic data transmission
- -40 to 65°C operating temperature range (EKI-5729PI)
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Provides 5/6 Fast Ethernet ports with 8 PoE ports
- Supports redundant 12V~24V (9V ~ 36V) power input and P-Fail relay
Documents
Technical Specifications
Certification
| Ethernet Standard | IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az, 802.3z, 802.3af/at |
| Safety | IEC/EN 60950-1, UL 61010-2-201 |
| EMC | CE, FCC, e-Mark |
| EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
Environment
| Temperature (Operating Range) | -40 ~ 65°C (-40 ~ 149°F) |
| Temperature (Storage Range) | -40 ~ 85°C (-40 ~ 185°F) |
| Relative Humidity | 10~95% |
Ethernet Communication
| RJ-45 Transmission Distance | 100 m |
| Fiber Transmission Distance | - |
| RJ-45 Transmission Speed | 10/100/1000 Mbps |
Interface
| Port Number | 10 |
MTBF
| Time | 3,858,286 hours |
| Method | Telcordia(Relax), GB |
Mechanism
| Dimensions (W x H x D) | 74 x 152 x 105 mm (2.91 x 5.98 x 4.13) |
| IP Rating | IP30 |
| Enclosure (Metal) | Metal |
| Weight | 0.7 kg |
| Mounting | DIN-rail, Wall |
PoE Information
| PoE Port Number | 8 |
Power
| Power Operating Current | 0.23A @ 24V |
| Power consumption | Max. 6.8W |
| Power Connector Type | 6-pin removable screw terminal (power & relay) |
| Power Input (DC) | 12 ~ 24 VDC |
Switch Properties
| MAC Table Size | 8K |
| Packet Buffer Size | 4.1M bit |
| Switch Fabric Speed | 20Gbps |
| Jumbo Frame | 9,216 bytes |
Warranty
| Warranty Period | 5 years |
