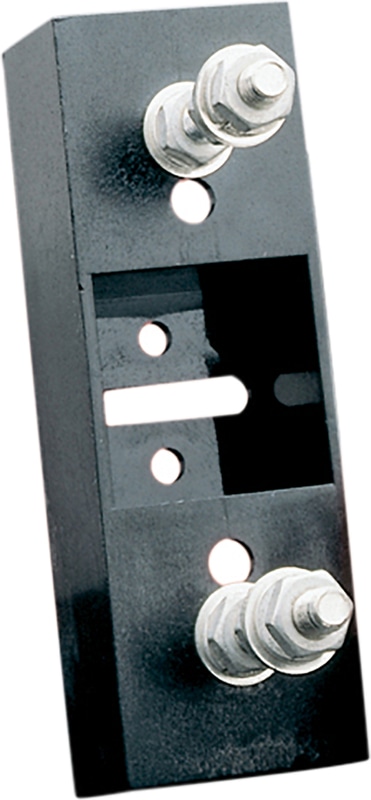

P-Block
Mersen P-Block series for Form 101 fuses are glass-filled polycarbonate or laminated phenolic insulator blocks with studs to accommodate bolt-in fuses. All studs, clips and mounting hardware are tin or zinc-plated
Features
- Glass-filled polycarbonate or laminated phenolic insulator blocks with
- studs to accommodate bolt-in fuses
Applications
- Fuse blocks for semiconductor fuses
Technical Specifications
| Ampere Rating | 200 A |
| Sell Pack Length | 190.5 mm |
| Sell Pack Width | 127 mm |
| Sell Pack Quantity | 5 EA |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 1000 V |
| Rated Voltage Dc Ul | 1000 V |
| Product Height | 70.9 mm |
| Product Length | 111.8 mm |
| Product Width | 70.9 mm |
| Product Weight | 0.1134 kg |
| Fuse Type Class | Semiconductor |
| Indication System | 0 |
| Max Fuse Rating | 200 A |
| Installation Mounting | Direct Screw Mount |
| Connection Terminal Type | Stud |
| Connection Terminal Material | Tin-Plated Copper |
| Body Insulating Material | Phenolic |
| Number of Poles | 1-pole |
| Wire Connections | Stud |
| Short Circuit Current Rating Sccr | 10 kA |
Why Proax for Mersen P243C?
Proax is the authorized distributor of Mersen P243C. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
