MPDB66593
Official DistributorBy Mersen
SKU
MERMPDB66593
Weight
1.542 kg

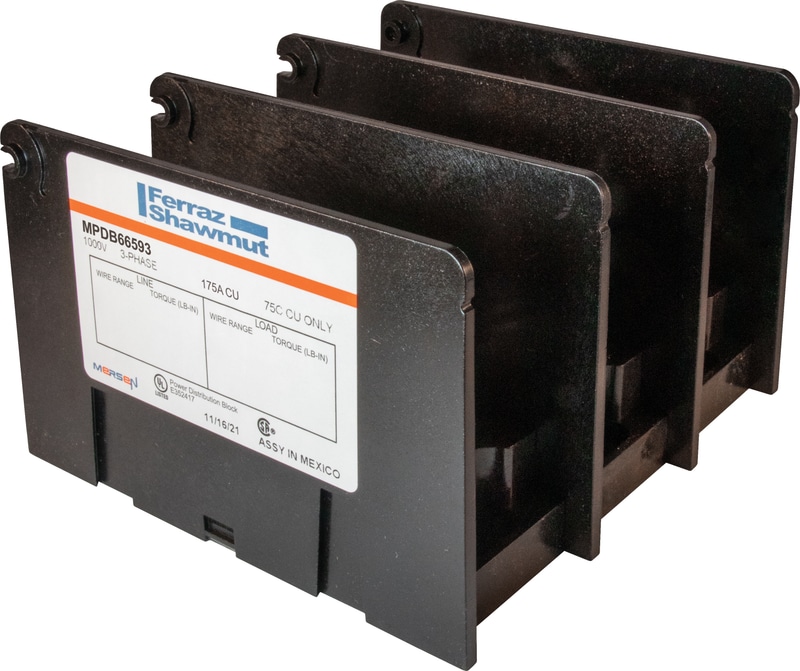

Open-Style PDB UL 1953 1000V Tin‑plated Copper – 175 A 3‑Pole, 1 primary opening and 10 secondary openings; primary wire range 2/0‑#14, secondary wire range #6‑#14, Box‑to‑Box connections.
Technical Specifications
| Frequency | 50/60 Hz |
| Ampere Rating | 175 A |
| Number of Poles | 3-Pole |
| Mounting | Direct Screw Mount |
| short circuit rating | 100 kA (with appropriate fusing) |
| Connector Material | Tin‑plated Copper |
| Dimensions | 134.1 mm × 78.2 mm × 82.6 mm |
| Rated voltage | 1000 V (AC/DC) |
| primary wire range | 2/0‑#14 |
| secondary wire range | #6‑#14 |
