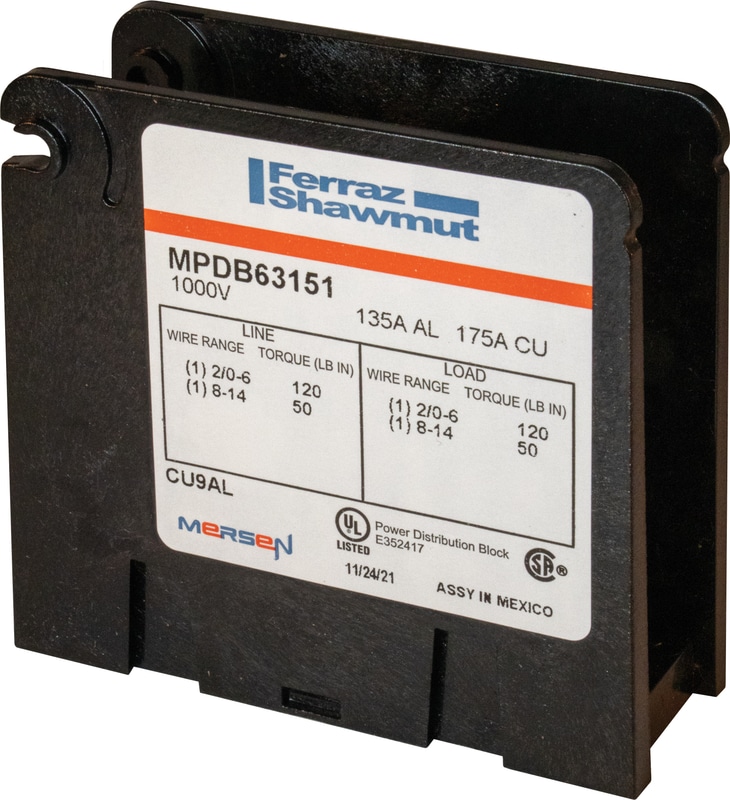

MPDB63151
Official DistributorBy Mersen
SKU
MERMPDB63151
Weight
0.091 kg
Open-Style PDB UL 1953 1000V 135A Tin‑plated Aluminum – 175A 1‑Pole 1‑1 openings; 2/0‑#14 -- 2/0‑#14 Box to Box
Technical Specifications
| Rated Voltage Ac Ul | 1000 V |
| Rated Voltage Dc Ul | 1000 V |
| Frequency | 50/60 Hz |
| Number of Poles | 1 |
| torque rating | 2/0‑#6 120 lb·in; #8‑#14 50 lb·in |
| Connector Material | Tin‑plated Aluminum |
| Dimensions | 26.7 mm × 78.2 mm × 71.4 mm |
| amperage rating al | 135 A |
| amperage rating cu | 175 A |
| primary secondary wire range | 2/0‑#14 |
Why Proax for Mersen MPDB63151?
Proax is the authorized distributor of Mersen MPDB63151. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 6 |
