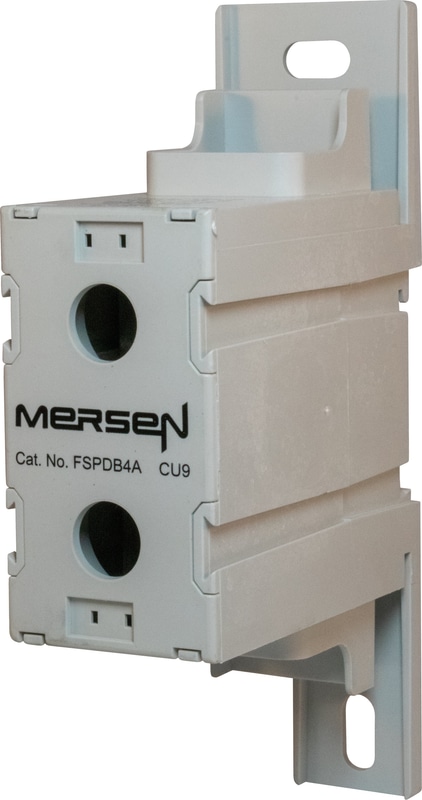

FSPDB Series UL 1059 Finger-Safe Power Distribution Block 600V 335A - 335A Tin-plated Aluminum 1-Pole 1 - 1 openings; 400 - #6 --- 400 - #6

Documents

FSPDB Series UL 1059 Finger-Safe Power Distribution Blocks

FSPDBs introduce a new level of safety and ease for installing power distribution blocks. An IP20 level of finger safe protection is achieved using the FSPDBs and thus eliminates the need for special covers or custom Plexiglas sheets to protect your panels. FSPDBs (sizes 1 to 4) simply snap onto 35mm DIN rail to provide the quickest installation. And since they are modular, you can form any number of poles desired. If multi-pole panel mounting is desired, multiple-pole assembly pins are available. FSPDBs provide a safe, convenient way of splicing cables, splitting primary power into a variety of secondary circuits or providing a fixed junction tap-off point.

Features

  • Finger-safe protection: Fully insulated block ensures touch safe isolation of live parts. Recessed termination screws and wire openings provide IP20 grade protection and qualify as “fingersafe” per IEC 529
  • Compact modularity: Single or multiple pole configurations in the most compact footprint. Allows users to build smaller or higher density panels
  • Snap on DIN-rail mounting: Sizes 1 to 4 feature integral DIN rail adaptors allowing for quick and easy installations on 35mm DIN rail yielding lower installed costs
  • Captive termination screws: Unique channel design ensures captive metric wire termination screws. Screws can never be lost
  • Available accessories: For multi-pole panel mounting, simply snap in pins for rigid fit. Cap plugs provide the ability to maintain touch safety on unused openings. Circuit identification markers simply snap into blocks to ID circuits. End anchors provide rigid end stops
  • Multiple wire ratings: Provide users more versatility by offering capability of using multiple conductors in #2 and 2/0 openings
  • AC & DC ratings: FSPDB1, 2, and 3 have been evaluated for use at 1500V (AC or DC) provided they are installed on DIN-rails only and with proper barriers and spacing between poles of opposite polarity

Applications

  • Splicing cables
  • Splitting primary power into a variety of secondary circuits
  • Providing a fixed junction tap-off point
Technical Specifications

Ampere Rating Al335 A
Ampere Rating Cu335 A
Ac - Dc - Ac DcAC/DC
Rated Voltage Ac Ul600 V
Rated Voltage Dc Ul1500 V
Product Height80 mm
Product Length145.5 mm
Product Width39.1 mm
Product Weight0.4536 kg
Installation MountingScrew Mount or DIN Rail
Connector MaterialTin-plated Aluminum
Body Insulating MaterialNylon
Number of Poles1-pole
Wire Range Primary400 - #6

Wire Range Secondary400 - #6
Wire TypeSolid/Stranded CU
Connector Type PrimaryBox
Connector Type SecondaryBox
Number Of Openings Per Pole Primary1
Number Of Openings Per Pole Secondary1
Short Circuit Rating Standalone10 kA
Ul Series Rated Sccr Cc Fuses30 kA
Ul Series Rated Sccr G Fuses60 kA
Ul Series Rated Sccr J Fuses400 kA
Ul Series Rated Sccr L Fuses0 kA
Ul Series Rated Sccr Rk1 Fuses200 kA
Ul Series Rated Sccr Rk5 Fuses100 kA
Ul Series Rated Sccr T Fuses400 kA
