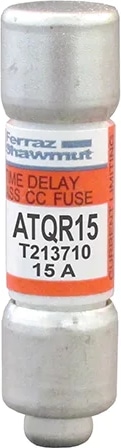

ATQR15
Official DistributorBy Mersen
SKU
MERATQR15
Weight
0.008 kg
Series ATQR - Class CC - Time-Delay
Fuse ATQR - Class CC - Time‑Delay 600VAC 300VDC 15A Ferrule Amp‑Trap 2000®
Documents
ATQR - Class CC - Time-Delay
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- Time-delay for control transformer inrush loads without nuisance opening
- Highly current-limiting for low peak let-thru current
- Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
- High visibility orange label ensures instant brand recognition, and simplifies replacement
- Metal-embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High-grade silica filler ensures fast arc quenching and high current limitation
Applications
- Control transformers
- Solenoids
- Inductive loads
- Lighting, heating & general-purpose loads
Technical Specifications
| Frequency | 50/60 Hz |
| Ampere Rating | 15 A |
| ac or dc | AC/DC |
| Fuse Class | Class CC |
| Sell Pack Quantity | 10 EA |
| sell pack weight | 0.0816 kg |
| Body Insulating Material | GMG |
| Product group | Low Voltage UL/CSA Fuses |
| Product Length | 38.1 mm |
| Speed Characteristic | Time Delay |
| Mounting | Clip |
| ac max ir breaking capacity | 200 kA |
| Connection Terminal Material | Tin-Plated Copper |
| Connection Terminal Type | Ferrule |
| Product Diameter | 10.4 mm |
| sell pack dimensions | 22.4 mm × 41.4 mm × 54.1 mm |
| item number | ATQR15 |
| ean upc code | 782001904685 |
| rated voltage ac | 600 V |
| rated voltage dc | 300 V |
