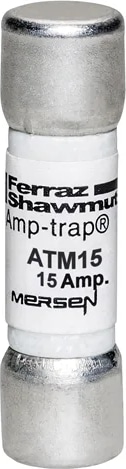

ATM15
Official DistributorBy Mersen
Documents
ATM - Midget - Fast-Acting
Amp-Trap® midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).
Features
- For supplemental protection of small motors and transformers
- Extended ratings for special protection of capacitors and circuits with high inrush currents
- 600VDC ratings for a wide variety of applications including photovoltaic and solar applications.
- Can be used with UltraSafe™ fuse holders
- 1 1/2" x 13/32" (10mm x 38mm) dimensions
Applications
- Supplemental protection of of circuits up to 600VAC and 600VDC with 100kA I.R.
| Frequency | 50/60 Hz |
| Ampere Rating | 15 A |
| ac or dc | AC/DC |
| Fuse Class | Midget |
| Body Insulating Material | GMG |
| Product Length | 38.1 mm |
| Speed Characteristic | Fast-Acting |
| Mounting | Clip |
| Connection Terminal Material | Tin-Plated Copper |
| Connection Terminal Type | Ferrule |
| Product Diameter | 10.3 mm |
| rated voltage ac | 600 V |
| rated voltage dc | 600 V |
| interrupting capacity ac | 100 kA |
Why Proax for Mersen ATM15?
Proax is the authorized distributor of Mersen ATM15. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Pack Size | 10 |
