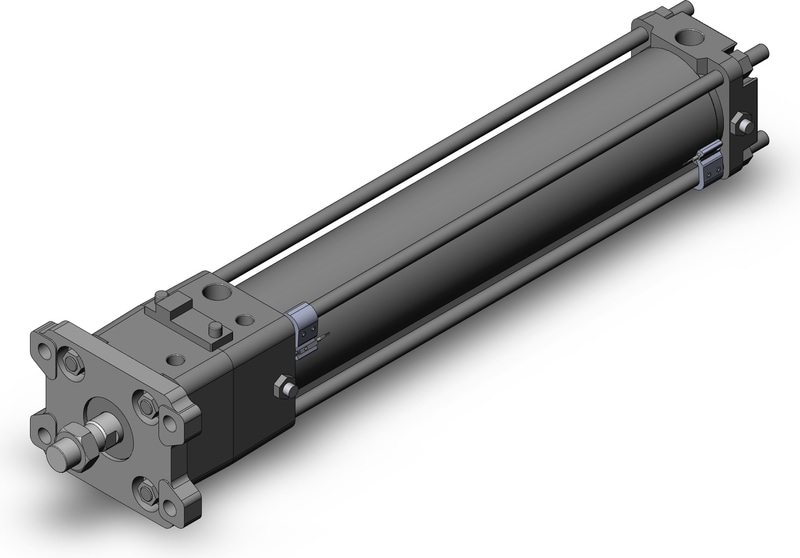

CDLA2F80TN-400-D-A93L

The CLA2 cylinder acts as an air-operated brake with spring-backup. When external position feedback sends a signal to an air valve, the brake is actuated and fast-acting shoes grab the actuator shaft. When pressure is removed, the spring automatically locks the brake onto the shaft. Three locking mechanisms are available: spring lock, air pressure lock and air/spring pressure lock. The CLA2 locks in either direction, comes in five bore sizes, and is available with PT or NPT ports. Other features include non-lube operation, air cushions, and seven mounting styles.

• Double acting, single rod cylinder w/lock
• Mounting: basic, axial foot, rod flange, head flange, single clevis, double clevis, center trunnion
• Bore sizes (mm): 40, 50, 63, 80, 100
• Strokes up to 1500mm (depending on bore size & mounting)
• Auto switch capable
