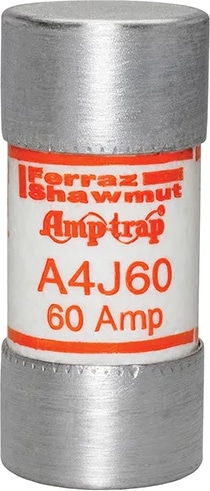

A4J60
Official DistributorBy Mersen
SKU
MERA4J60
Weight
0.077 kg
Series A4J - Class J - Fast-Acting
Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 60A Ferrule Amp‑Trap®
Documents
A4J - Class J - Fast-Acting
Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.
Features
- High current limitation for low peak let-thru current
- Unique dimensions prevent replacement by other fuse classes
- Fiberglass body provides dimensional stability in harsh industrial environments
- Easy-to-read imprint label for quick recognition and replacement
Applications
- Capacitors
- Load centers
- Panelboards
- Switchboards
- Bus duct
- Feeder circuits
- Circuit breakers
- Lighting, heating, and general loads
Technical Specifications
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 300 V |
| Ampere Rating | 60 A |
| ac or dc | AC/DC |
| Fuse Class | Class J |
| Body Insulating Material | PolyTube |
| Product Length | 60.5 mm |
| Speed Characteristic | Fast-Acting |
| Mounting | Clip |
| ac max ir breaking capacity | 200 kA |
| Connection Terminal Material | Tin-Plated Copper |
| Connection Terminal Type | Ferrule |
| Product Diameter | 27 mm |
Why Proax for Mersen A4J60?
Proax is the authorized distributor of Mersen A4J60. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
