A4J125
Official DistributorBy Mersen
SKU
MERA4J125
Series A4J - Class J - Fast-Acting

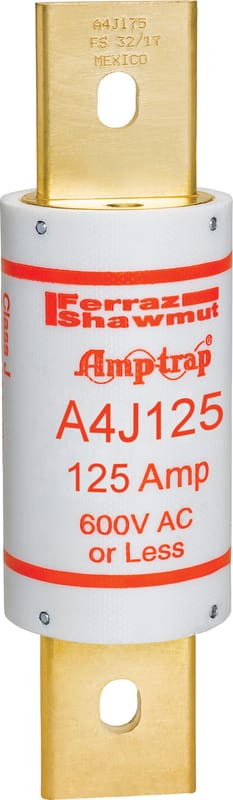

Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 125A Blade Amp-Trap®
Documents
A4J - Class J - Fast-Acting
Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.
Features
- High current limitation for low peak let-thru current
- Unique dimensions prevent replacement by other fuse classes
- Fiberglass body provides dimensional stability in harsh industrial environments
- Easy-to-read imprint label for quick recognition and replacement
Applications
- Capacitors
- Load centers
- Panelboards
- Switchboards
- Bus duct
- Feeder circuits
- Circuit breakers
- Lighting, heating, and general loads
Technical Specifications
| Ampere Rating | 125 A |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 300 V |
| Product Diameter | 41.3 mm |
| Product Length | 146 mm |
| Product Weight | 0.3629 kg |
| Fuse Class | Class J |
| Indication System | 0 |
| Speed Characteristic | Fast-Acting |
| Mounting | Clip |
| Connection Terminal Type | Blade |
| Connection Terminal Material | Brass Alloy |
| Body Insulating Material | GMG |
