64033J
Official DistributorBy Mersen
SKU
MER64033J

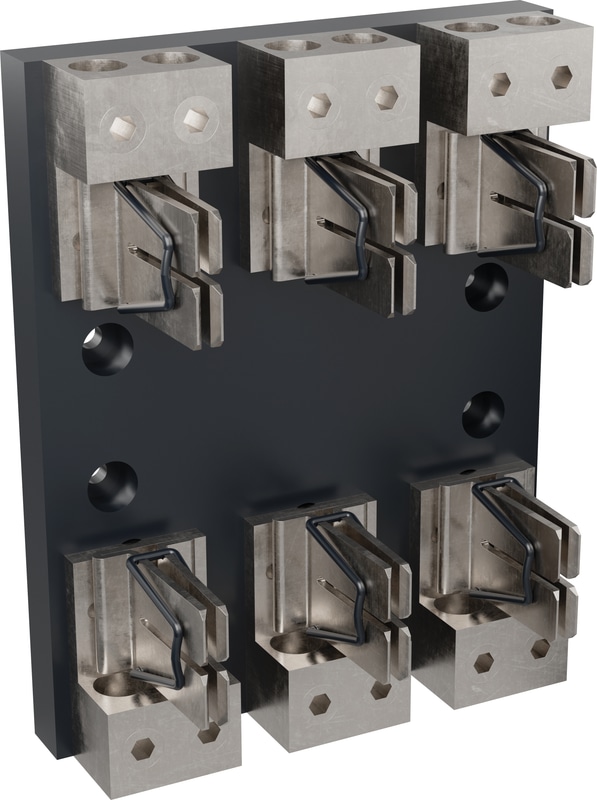

Fuse Block 600VAC 600VDC Class J 400A 3-Pole Box In-Line Clip
Class J Fuseholders - Class J
Mersen’s connectors fit a wide range of stranded or solid copper or aluminum conductors. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. All fuse clips are made of high conductivity tinplated copper designed specifically for 200-600A bladed Class J fuses.
Features
- Class J Blocks (600V) use with AJT, A4J, HSJ
Applications
- 600V Fuseholders for UL Class J fuses
Technical Specifications
| Ampere Rating | 400 A |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 600 V |
| Product Height | 91.9 mm |
| Product Length | 254 mm |
| Product Width | 266.7 mm |
| Product Weight | 7.4616 kg |
| Fuse Class | Class J |
| Fuse Type Class | Class J |
| Indication System | 0 |
| Max Fuse Rating | 400 A |
| Installation Mounting | Direct Screw Mount |
| Body Insulating Material | Phenolic |
| Number of Poles | 3-Pole |
| Wire Connections | Box In-Line Clip |
| Short Circuit Current Rating Sccr | 200 kA |
Why Proax for Mersen 64033J?
Proax is the authorized distributor of Mersen 64033J. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
