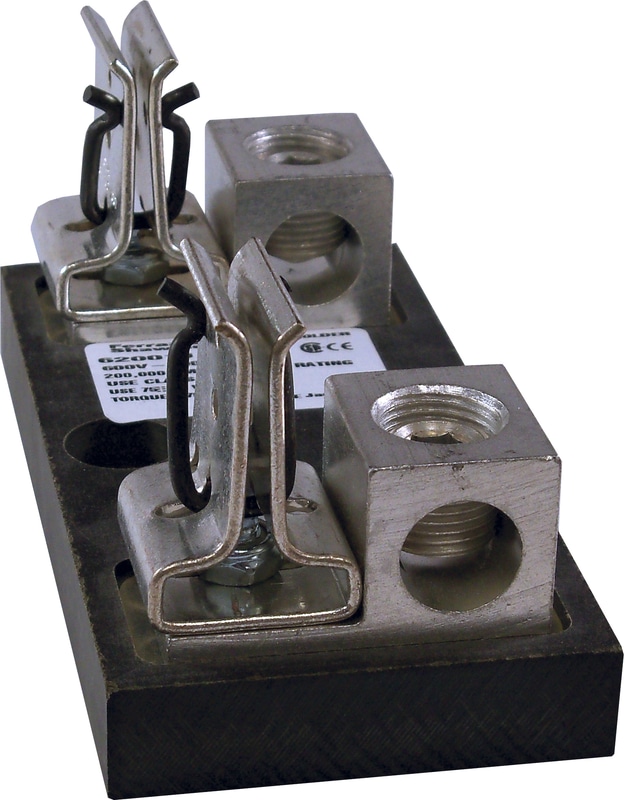

62001J
Official DistributorBy Mersen
Fuse Block 600VAC 600VDC Class J 200A 1-Pole Box Side-Clip
Mersen’s connectors fit a wide range of stranded or solid copper or aluminum conductors. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. All fuse clips are made of high conductivity tinplated copper designed specifically for 200-600A bladed Class J fuses.
Class J Fuseholders - Class J
Mersen’s connectors fit a wide range of stranded or solid copper or aluminum conductors. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. All fuse clips are made of high conductivity tinplated copper designed specifically for 200-600A bladed Class J fuses.
Features
- Class J Blocks (600V) use with AJT, A4J, HSJ
Applications
- 600V Fuseholders for UL Class J fuses
| Ampere Rating | 200 A |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 600 V |
| Product Height | 73.7 mm |
| Product Length | 155.7 mm |
| Product Width | 76.2 mm |
| Product Weight | 0.7711 kg |
| Fuse Class | Class J |
| Fuse Type Class | Class J |
| Indication System | 0 |
| Max Fuse Rating | 200 A |
| Installation Mounting | Direct Screw Mount |
| Body Insulating Material | Glass Filled Polycarbonate |
| Number of Poles | 1-Pole |
| Wire Connections | Box Side-Clip |
| Short Circuit Current Rating Sccr | 200 kA |
