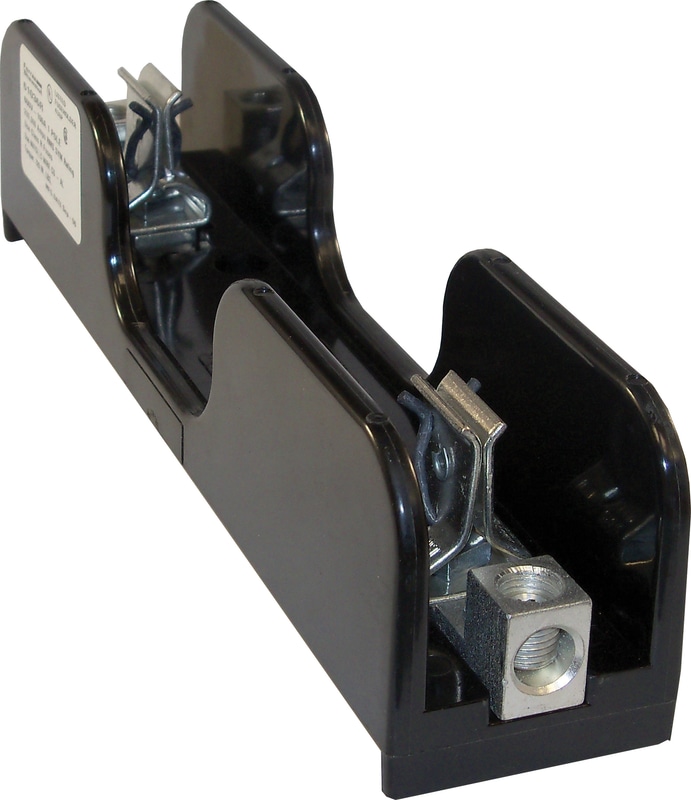

61036R
Official DistributorBy Mersen
Documents
Class R 600V Fuseholders - Class R
Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced.
Applications
- 600V Fuseholders for UL Class R fuses
| Ampere Rating | 100 A |
| Sell Pack Length | 162.1 mm |
| Sell Pack Width | 65 mm |
| Sell Pack Quantity | 3 EA |
| Ac - Dc - Ac Dc | AC/DC |
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 600 V |
| Product Height | 63 mm |
| Product Length | 256 mm |
| Product Width | 53.3 mm |
| Product Weight | 0.4264 kg |
| Fuse Type Class | Class R |
| Indication System | 0 |
| Max Fuse Rating | 100 A |
| Installation Mounting | Screw Mount or DIN Rail |
| Body Insulating Material | Glass Filled Polycarbonate |
| Number of Poles | 1-pole |
| Wire Connections | Box with Reinforced Clip |
| Short Circuit Current Rating Sccr | 200 kA |
