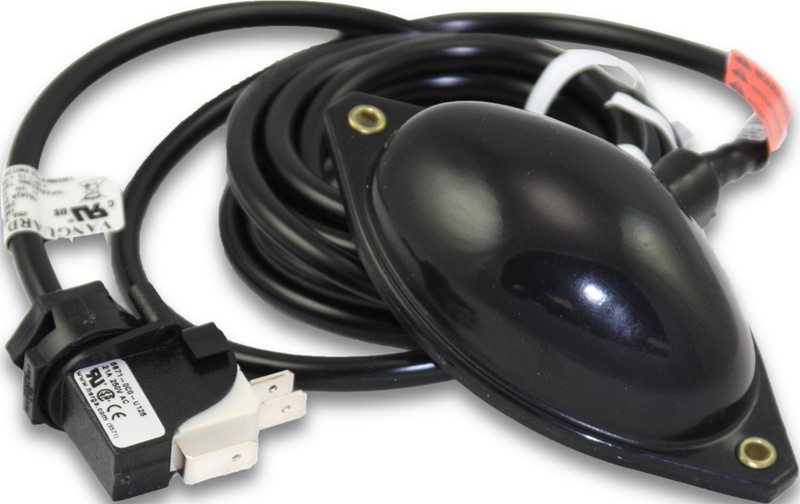

81SH12
Official DistributorBy Linemaster
SKU
LIN81SH12
Weight
1 kg
Vanguard - Momentary
Momentary Air Switch - Isolated Electric Snap Switch
Enclosure
EN 60529 Degree of Protection • IPXX Master Actuator • EN 60529 Degree of Protection • IP00 Snap Switch
Purpose
Ergonomic Versatile Design
Features & Benefits
- Easy to operate by hand or foot
- Up to 30 foot range using PVC tubing
- Isolates operation from electrically live switch
- Offers environmental protection from short or shock
- Designed for long life trouble free operation
- Simple field replacement of components
- Application versatility
- Ease of interfacing
Materials
- Molded PVC bulb
- Designed with isolated electrical airswitch
- Combines a foot operated air bulb and a remotely located electric snap switch
- Supplied with 8 ft. 1/8 in. Black PVC tubing
- Brass fittings
- Actuating Bulb supplied with two grommet mounting holes (Standard Only)
Documents
Technical Specifications
| Switch Type | Air Switch |
| Actions | Momentary |
| Circuitries | SPDT (Form "C") |
| Cordsets | 8-ft black PVC tubing |
| Housing Colors | Black |
| Housing Materials | Vinyl bulb |
| Switch Connections | Quick-connect terminal |
| Electrical Ratings | 2 HP, 250 VAC, 20A, 125-250 VAC, 1 HP 125 VAC |
