511-B2OX
Official DistributorBy Linemaster
SKU
LIN511B2OX

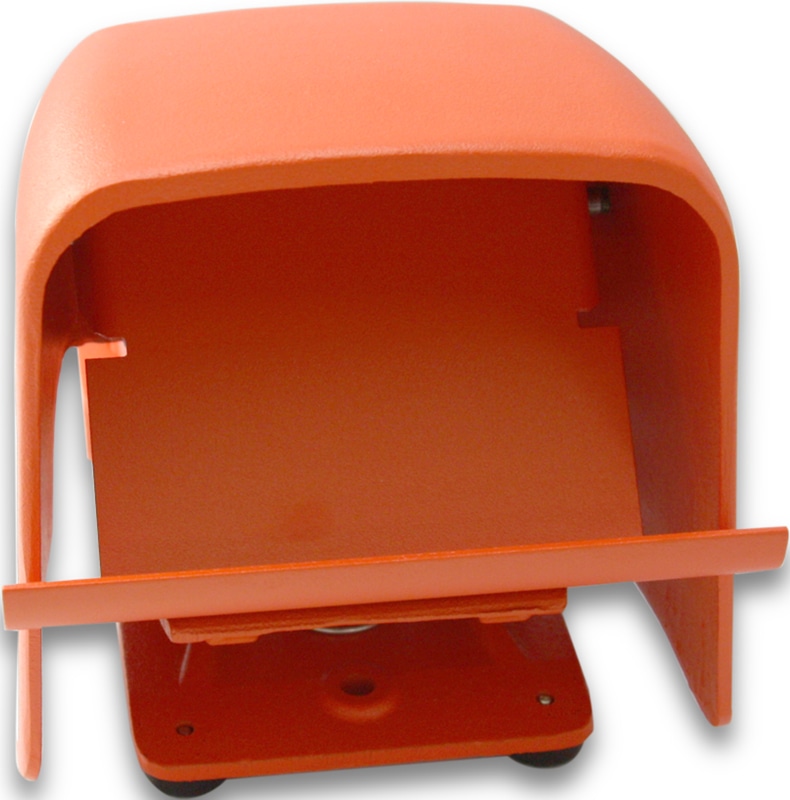

Anti Trip - Hercules Gated OX Shield
Drip Tight • Dust Tight • Watertight • Oil Tight
Enclosure
NEMA Type 2, 4 & 13 • UL ENCLOSURE 2, 4 & 13 • CSA ENCLOSURE 2, 4 & 13 • EN 60529 Degree of Protection • IP56
Purpose
Advanced Design helps prevent accidental actuation
Features & Benefits
- Heavy duty foot switch features an anti-trip treadle mechanism that helps prevent accidental actuation through unintentional stepping on foot treadle
- Switch operation requires that the latch trip lever be released prior to depressing the foot treadle as in-line foot pressure is applied to the latch trip lever located at the rear of the foot treadle
- Smooth trip lever release and treadle depression motion results in good rate of operation
- Dual treadle return springs and latching mechanism
- Anti-skid rubber feet and 3 holes for rigid mounting to floor or equipment
- All Models have a neoprene Cover Gasket plus O-Rings on the Actuating shaft and separate ground screw
Materials
- Treadle and housing constructed from cast iron for strength and durability
- Protected by a strong cast aluminum shield
- Special AirVal models available to the O.E.M. on special order
- Painted Alert Orange
- Single 3/4"-14 N.P.T. threaded conduit entry is standard
Documents
Technical Specifications
| Switch Type | Electrical |
| Actions | Single Stage Momentary |
| Circuitries | DPDT (Form CC) |
| Cable Entries | 3/4"-14 NPT threaded entry |
| Housing Colors | Orange |
| Housing Materials | Cast Iron |
| Shields & Guards | Gated OX Shield |
| Electrical Ratings | 20 A 125-250 VAC, 1 H.P. 125-250 VAC, Heavy Pilot Duty 250 VAC Max. |
Why Proax for Linemaster 511-B2OX?
Proax is the authorized distributor of Linemaster 511-B2OX. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | 511B2OX |
| Pack Size | 1 |
