Technical Specifications
| Body Size | 1 |
| Set Pressure | 0 (Body Size 1, 2: 0.73 to 29 psi [0.005 to 0.2 MPa]; Body Size 3: 1.5 to 29 psi [0.01 to 0.2 MPa]) |
| Exhaust Direction | 0 (Bottom Exhaust) |
| Thread | N (NPT) |
| Port Size | 01 (1/8) |
| Option | EA (NPN Open Collector, 1 Output) |
| Semi-Standard | ZA (Digital Pressure Switch: With Unit Conversion Function) |
SMC eTechin IR
Why Proax for SMC IR1000-N01EA-ZA-A?
Proax is the Elite distributor of SMC IR1000-N01EA-ZA-A and one of SMC's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | IR1000N01EAZAA |
| Pack Size | 1 |
Recommended

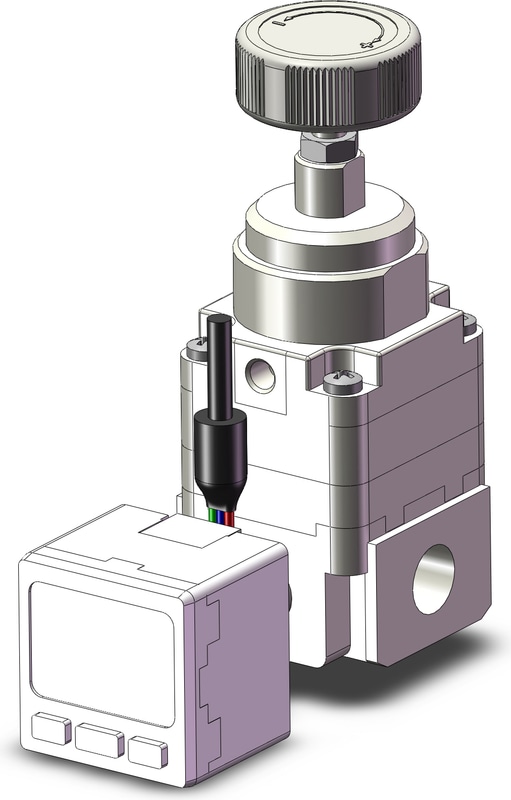

Compact precision regulator with NPT 1/8"" port, 0.005-0.2MPa set pressure, includes pressure gauge.- Compact precision regulator; set pressure 0.005–0.2 MPa, 1/8"" NPT port, includes bracket.
- Compact precision regulator with 1/8"" NPT port, 0.005-0.2MPa pressure range, includes bracket and gauge.
- Precision modular regulator with 0.005-0.2MPa set pressure, NPT threads, and 1/8"" port size.
