OT1600U03
Official DistributorBy ABB
SKU
ABBOT1600U03
MPN
1SCA144198R1001
Weight
53.7 kg
This item is ineligible for free shipping due to its size/weight.

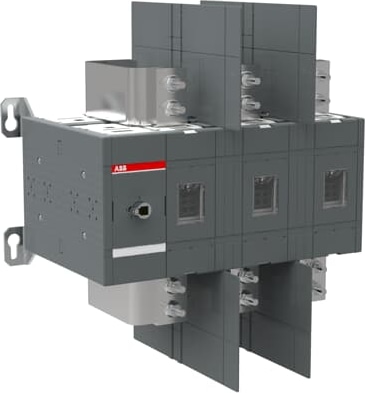

3-pole, front operated, base mounted non-fusible diconnect switch, handle and shaft are not included, terminal bolt kit included
Technical Specifications
ABB EcoSolutions
| End Of Life Disassembling Instructions | 1SCC301120M0201 |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
Dimensions
| Product Net Width | 445 mm |
| Product Net Height | 546 mm |
| Product Net Depth / Length | 335 mm |
| Product Net Weight | 53.7 kg |
Technical
| Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Handle Type | Handle and shaft not included |
| Mechanical Durability | 2500 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Line Terminals | Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 96 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Special Functions | No |
| Standards | UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Tightening torque | acc. IEC 60947-1 56 N·m |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 1600 A |
| Tightening torque | acc. IEC 60947-1 56 N·m |
| Tightening Torque UL/CSA | 500 in·lb |
