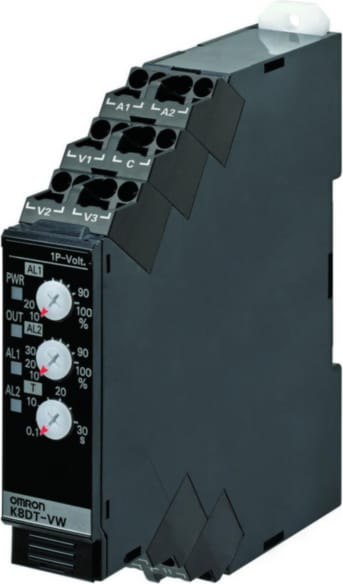

K8DT-VW3CD
Official DistributorBy Omron
SKU
OMRK8DTVW3CD
Monitoring relay 17.5mm wide, Single phase over and under voltage 20 to 600 V AC /DC, 1 x SPDT, 24 V AC/DC
K8DT-VW Voltage Monitoring Relay Terminals
Single-phase overvoltage/undervoltage relay
Detect abnormal voltages applied to equipment to protect against equipment failure. Monitor for overvoltages and undervoltages simultaneously with one relay.
- Monitor AC or DC voltages with one relay
- Settings for the operating value, hysteresis, and operating time
- Width of 17.5 mm to reduce space required in panels
- Push-in plus Technology that reduce wiring work
- Double-insertion holes for crossover wiring (all terminals)
- Models added with transistor outputs for superior contact reliability
- RoHS compliant
Technical Specifications
| Phase | 1-phase |
| Operation | Simultaneous upper and lower limit monitoring |
| Range | 20 to 200 V AC/DC, 30 to 300 V AC/DC, 60 to 600 V AC/DC |
| Supply Voltage | 24 VAC/VDC |
| Case Material | PC |
| Mounting | DIN rail |
