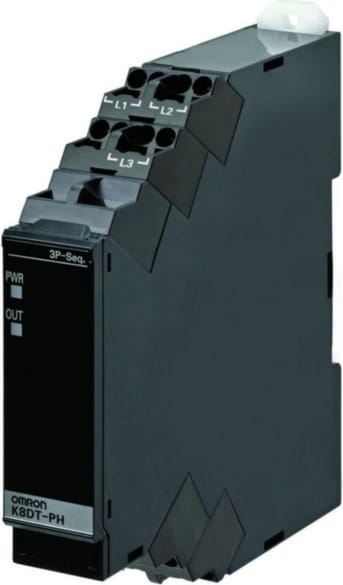

K8DT-PH
Phase-sequence phase-loss relay
Protect motors and other equipment from unstable voltages in the power supply system. Protect motors and other equipment by detecting phase sequence and phase loss for three-phase power supplies.
- Phase loss detection while the motor is operating
- Global application with power supply range of 200 to 480 V with one relay
- Greater resistance to inverter noise
- Width of 17.5 mm to reduce space required in panels
- Push-in plus Technology that reduce wiring work
- Double-insertion holes for crossover wiring (all terminals)
- Models added with transistor outputs for superior contact reliability
- RoHS compliant
Technical Specifications
| Phase | 3-phase |
| Operation | Detection of phase loss |
| Range | 200 to 480 VAC 3-wire |
| Supply Voltage | 200 to 480 VAC |
| Case Material | PC |
| Mounting | DIN rail |
Why Proax for Omron K8DT-PH1CN?
Proax is an authorized distributor of Omron K8DT-PH1CN. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | K8DTPH1CN |
| Pack Size | 1 |
