Official DistributorBy Omron
SKU
Colour-mark sensor, diffuse, rectangular shape, IP67 , 10 +/- 3mm, 50µs response time, PNP, IO-Link COM3, M12 connector
Documents

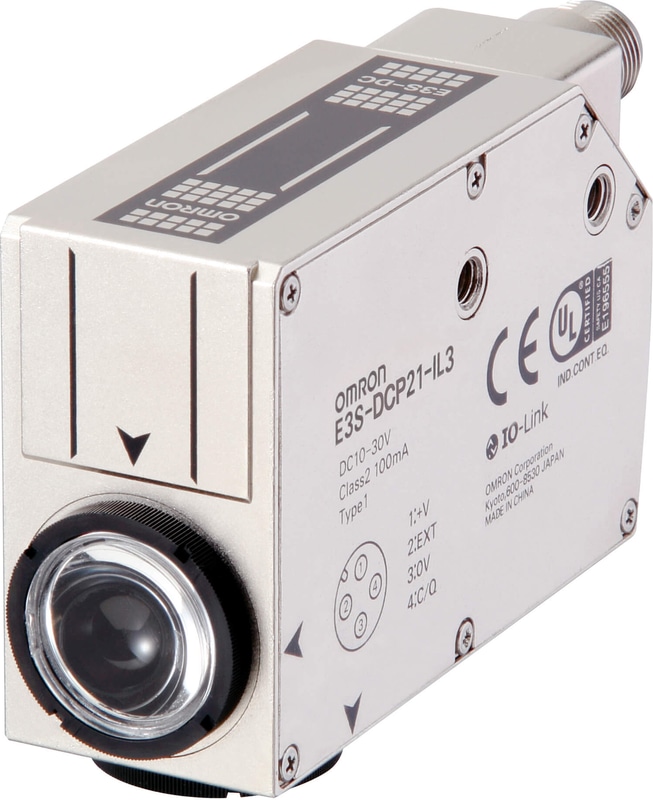

E3S-DC-IL Color Mark Photoelectric Sensor
High signal: noise colormark detector with IO-Link capability
E3S-DC-IL is a variation of the high signal:noise colormark detector that can communicate via IO-Link to provide real-time output monitoring and enable configuration changes remotely.
Technical Specifications
| Type | Color Mark Sensor |
| Body Type | Rectangular |
| Sensing Method | Diffuse-reflective |
| Output | PNP |
| Max Sensing Distance | 13 mm |
| Connection | M12 4-pin connector |
| Special Feature | IO-Link |
| Light Source | Red LED |
| Operation | High when mark is detected |
| Supply Voltage | 10 to 30 VDC |
| Housing Material | Diecast zinc (nickel-plated brass) |
Why Proax for Omron E3S-DCP21-IL3?
Proax is an authorized distributor of Omron E3S-DCP21-IL3. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | E3SDCP21IL3 |
| Pack Size | 1 |
