Official DistributorBy ABB
SKU
MPN
2TLA042023R1300
Weight
0.295 kg

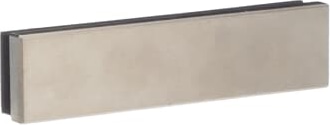

Anchor plate without permanent magnet. Delivered with cellular rubber.
Without permanent magnet, there is no magnetic field when the Magne is unlocked, which avoid the accumulation of metallic particles on the anchor plate. 2 mounting holes.
Technical Specifications
Dimensions
| Product Net Depth / Length | 30 mm |
| Product Net Height | 130 mm |
| Product Net Width | 10 mm |
| Product Net Weight | 0.28 kg |
Technical
| Suitable for | Magne 3X M12-5 |
| Suitable for | Magne 4X DYN M12-5 |
| Suitable for | Magne 4 DYN-Info |
| Suitable for | Magne 4 DYN-2 Info |
| Suitable for | Magne 4 OSSD-Info |
Why Proax for ABB Magne Anchor 32A?
Proax is an authorized distributor of ABB Magne Anchor 32A and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | MagneAnchor32A |
| Pack Size | 1 |
