96772167
Official DistributorBy Rittal
SKU
RIT9672167

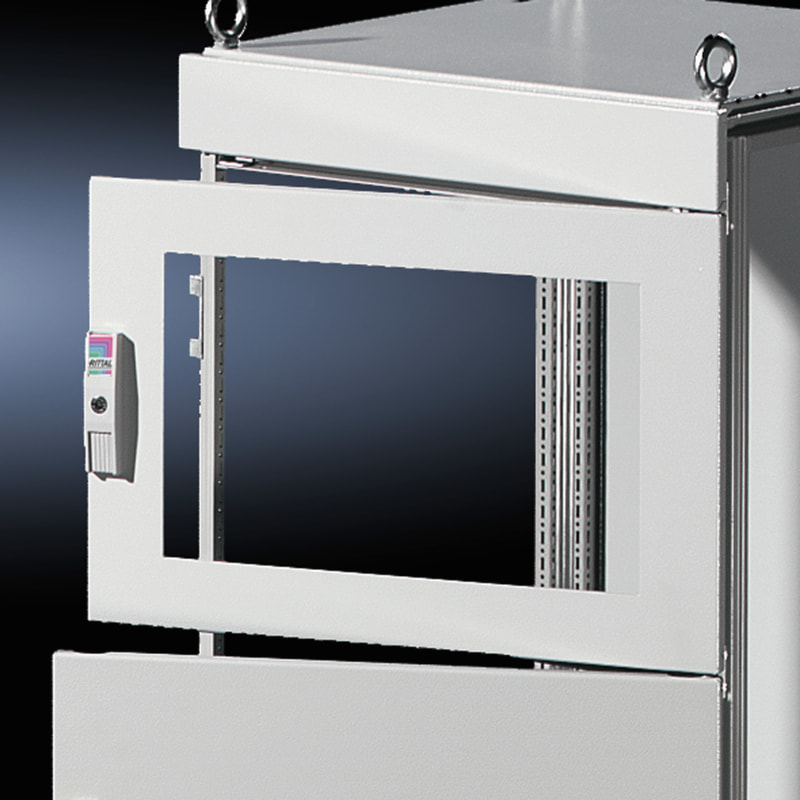

9672167, Suitable for TS enclosures instead of a door or rear panel. The partial doors can be combined as required. A front trim panel is required at the top and bottom. Door may be optionally hinged on the right or left. In doors without a viewing window (height 600 – 1000 mm), installation of the monitor frame SZ 2305.000 is possible. Standard double-bit lock insert may be exchanged for lock inserts, type F, and for comfort handle in systems 600 mm or more high.
Technical Specifications
| Version | with viewing window |
| Material - Viewing window | Single-pane safety glass, 3 mm |
| Surface finish | Textured paint |
| Color | RAL 7035 |
| Protection category IP to IEC 60 529 | IP 54 for a completed enclosure |
| Supply includes | Cross member Hinges Lock components Assembly components |
| Suitable for | Width: 600 mm (24 ˝) |
| Height | 600 mm (24 ˝) |
| Width | 600 mm (24 ˝) |
| Material | Carbon steel, 2 mm |
Why Proax for Rittal 96772167?
Proax is an authorized distributor of Rittal 96772167 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
