9676710
Official DistributorBy Rittal
SKU
RIT9676710
Weight
0.12 kg

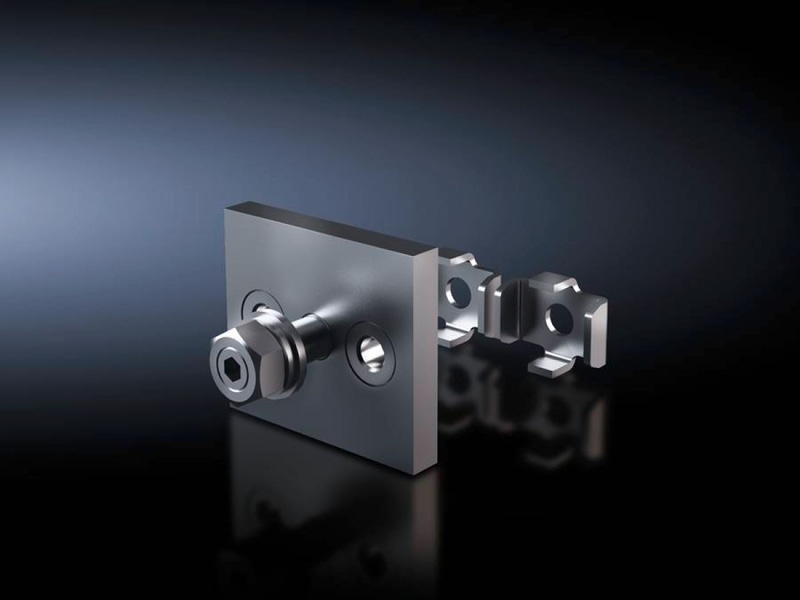

SV Connection plate, with bolts M10, (Flat-PLS)
Supply includes
Assembly parts (excluding screws)
Technical Specifications
Material
| Connection plate | E-Cu, nickel-plated |
| Busbar claw | Stainless steel |
| Mounting tip | The required screw length must be selected according to the busbar width W, i.e., Length = W + fastening measurement. Screws are not included with the supply |
| Number of bars per conductor | 2 |
| Dimensions | Thread: M10 |
| Mounting dimensions | 40 mm |
| Weight/packaging unit | 0.12 kg |
| Copper weight (kg per piece) | 0.07 |
| Customs tariff number | 85369010 |
| EAN | 4028177625778 |
| ETIM 7.0 | EC001900 |
| ECLASS 8.0 | 27400613 |
Why Proax for Rittal 9676710?
Proax is an authorized distributor of Rittal 9676710 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
