9676004
Official DistributorBy Rittal
SKU
RIT9676004
Weight
1.26 kg

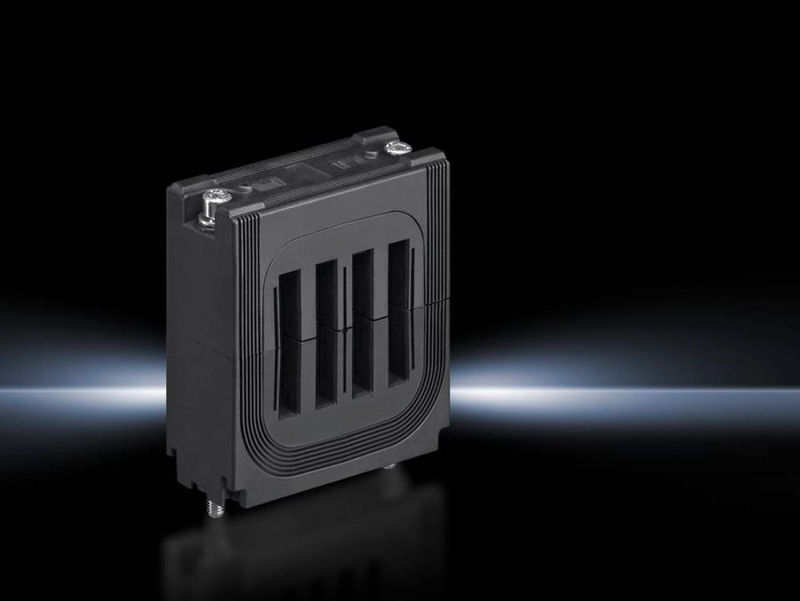

SV Busbar support, Flat-PLS 100, for busbar WH: 80/100x10 mm
Technical Specifications
Cross-section
| Flat copper bar width | 100 mm |
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Color | RAL 9005 |
| Number bars | 4 |
| Number of bars per conductor footnote | When using only 1, 2 or 3 bars, the vacant bar slots should be closed using the filler pieces |
| Suitable for busbar system | Flat-PLS 100 |
| Suitable for busbars | Flat copper busbars |
| Weight/packaging unit | 1.26 kg |
| Customs tariff number | 85469010 |
| EAN | 4028177595057 |
| ETIM 7.0 | EC001900 |
| ECLASS 8.0 | 27400613 |
Why Proax for Rittal 9676004?
Proax is an authorized distributor of Rittal 9676004 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
