9676002
Official DistributorBy Rittal
SKU
RIT9676002
Weight
0.66 kg

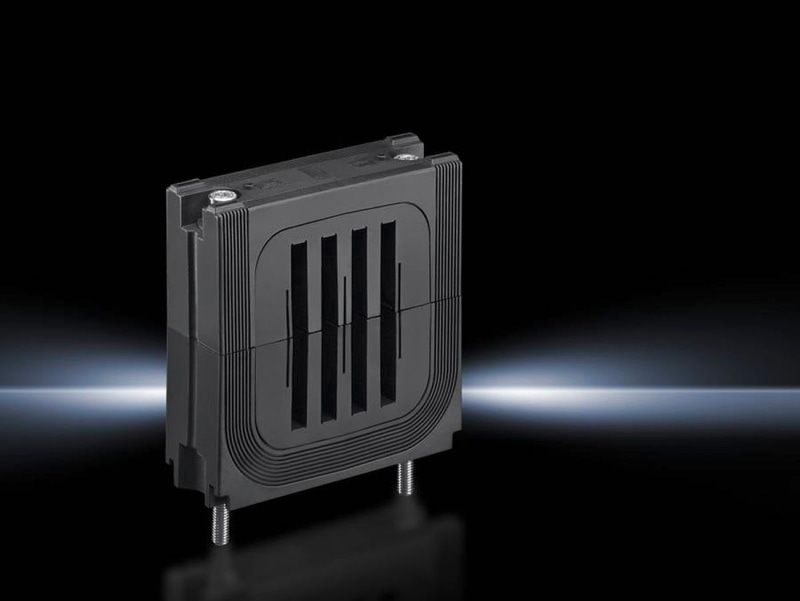

SV Busbar support, Flat-PLS 60, for busbar WH: 40-60x10 mm
Technical Specifications
Cross-section
| Flat copper bar width | 60 mm |
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Color | RAL 9005 |
| Number bars | 4 |
| Number of bars per conductor footnote | When using only 1, 2 or 3 bars, the vacant bar slots should be closed using the filler pieces |
| Suitable for busbar system | Flat-PLS 60 |
| Suitable for busbars | Flat copper busbars |
| Weight/packaging unit | 0.66 kg |
| Customs tariff number | 85469010 |
| EAN | 4028177578234 |
| ETIM 7.0 | EC001900 |
| ECLASS 8.0 | 27400613 |
