9666851
Official DistributorBy Rittal
SKU
RIT9666851
Weight
9.52 kg

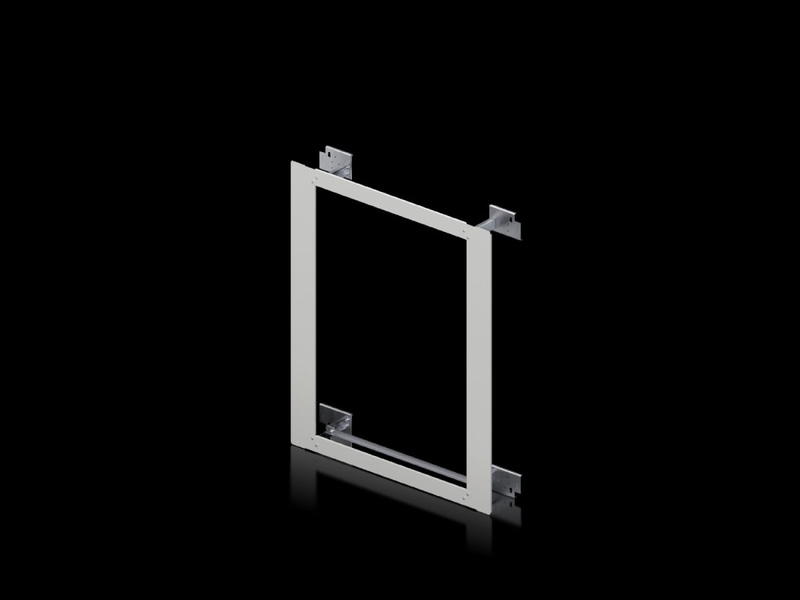

SV Installation kit (ISV), 3 WU (750 mm), 7 U (1050 mm), for AE (WHD: 1000x1200x300 mm)
Supply includes
Assembly kit
Support Rails
Contact Hazard Protection
Assembly components
Technical Specifications
Material
| Support rail | Carbon steel, zinc-plated |
| Contact hazard protection | Carbon steel, spray finished |
Size
| Width units (WU) @ 250 mm | 3 |
| Height units (U) @ 150 mm | 7 |
Suitable for
| Width | 1,000 mm |
| Height | 1,200 mm |
| Depth | 300 mm |
| Suitable for Model No. | 1019.X00 |
| Weight/packaging unit | 9.52 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177803749 |
| ETIM 7.0 | EC001900 |
| ECLASS 8.0 | 27400613 |
