9666420
Official DistributorBy Rittal
SKU
RIT9666420
Weight
1.66 kg

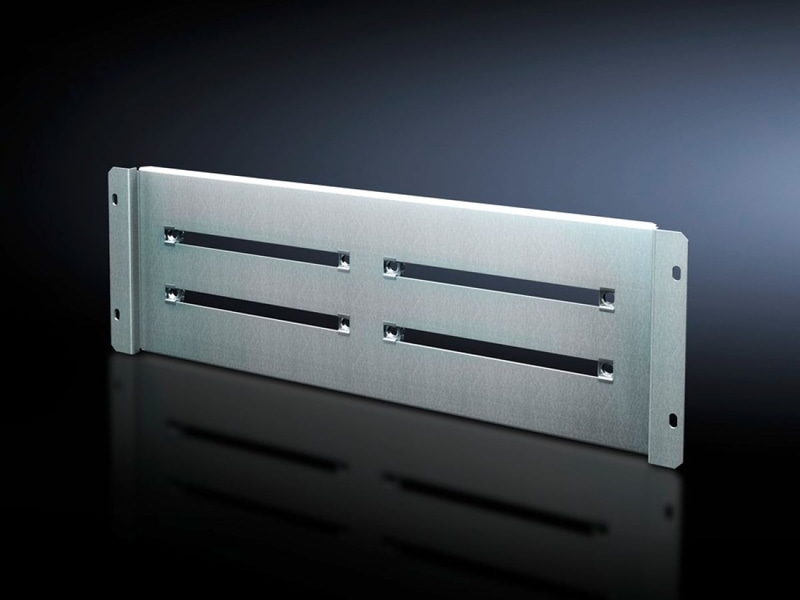

SV Disconnector cross-member (ISV), 2 WU (500 mm), 3 U (450 mm), for NH fuse-switch disconnector size 2/3
Supply includes
Assembly components
Technical Specifications
Dimensions
| Width | 500 mm |
| Height | 450 mm |
Size
| Width units (WU) @ 250 mm | 2 |
| Height units (U) @ 150 mm | 3 |
| Material | Carbon steel |
| Note | When using the disconnector cross-member, contact hazard protection module 9666.060 is also required |
| For size | 2 x size 2 |
| Suitable for Model No. | 9344.210 |
| Weight/packaging unit | 1.66 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177679917 |
| ETIM 7.0 | EC001900 |
| ECLASS 8.0 | 27400613 |
Why Proax for Rittal 9666420?
Proax is an authorized distributor of Rittal 9666420 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
