9666340
Official DistributorBy Rittal
SKU
RIT9666340
Weight
3.2 kg

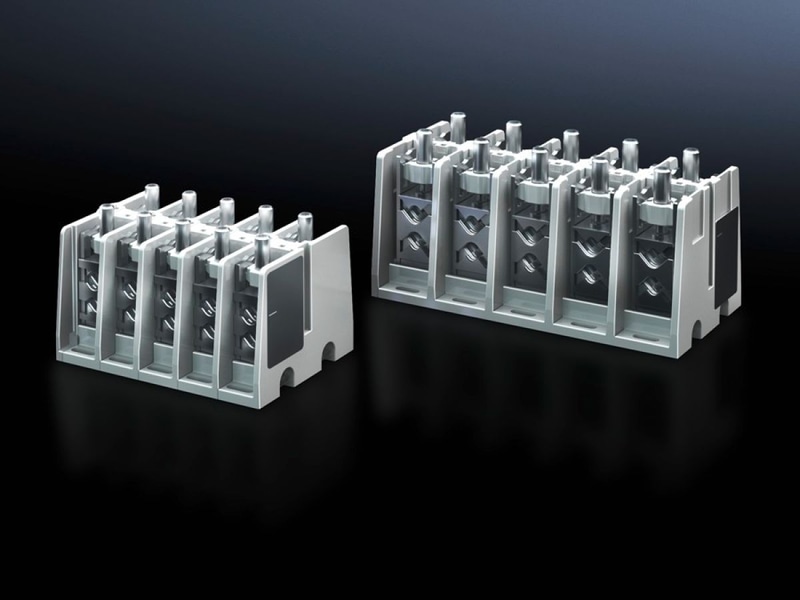

SV Connection terminal block (ISV), 250 A, 690 V, 5-pole, round conductor connection, 1x16-150/2x16-70 mm², clamping area BH: 17x21 mm
Supply includes
Assembly components
Technical Specifications
| Material | Duroplastic |
| Color | RAL 7035 |
| Mounting tip | Contact hazard protection module 9666.020 is required to cover the connection terminal block |
| Rated current max. | 250 A |
| Number of Poles | 5-pole |
| Connection of round conductors | 16 - 150 mm² |
| Clamping area for laminated copper bars (W x H) | 17 x 21 mm |
| Weight/packaging unit | 3.2 kg |
| Customs tariff number | 39211900 |
| EAN | 4028177676329 |
| ETIM 7.0 | EC001900 |
| ECLASS 8.0 | 27400613 |
Why Proax for Rittal 9666340?
Proax is an authorized distributor of Rittal 9666340 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
