9346015
Official DistributorBy Rittal
SKU
RIT9346015
Weight
1.36 kg
This product is Not Cancellable/Not Returnable

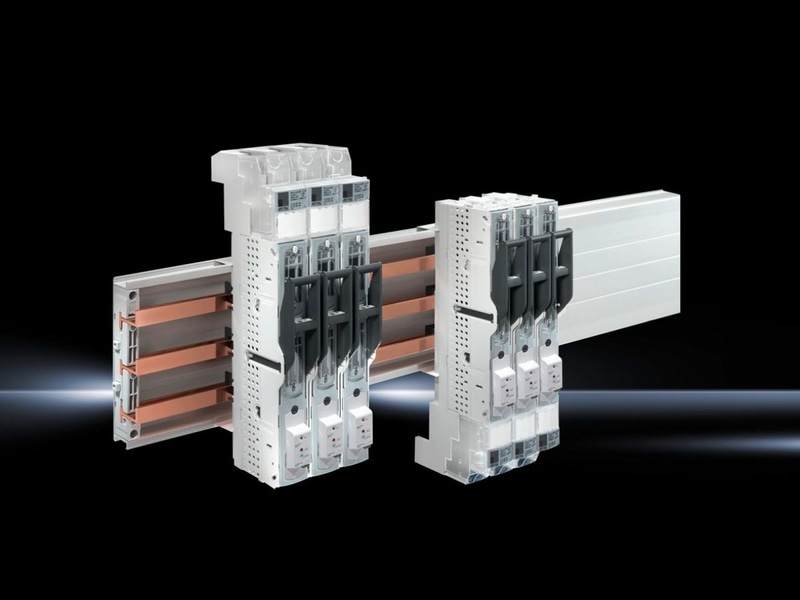

SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, 60 mm, with electronic fuse monitoring
Supply includes
3 mounting hooks
Technical Specifications
Color
| Chassis | RAL 7035 |
| Cover | RAL 7001 |
| Handle | RAL 7016 |
Dimensions
| Width | 50 mm |
| Height | 400 mm |
Material
| Contact tracks | Silver-plated hard copper |
Suitable for busbars
| with cross-section height | 5, 10 mm |
| For bar systems with center-to-center spacing | 60 mm |
| Cable outlet | Top/bottom |
| Type of connection (electrical) | Screw M8 |
| Rated operating current max. | 160 A |
| For NH size | 00 |
| Test specification | IEC 60 947-3 |
| Connection for round conductor cross-sections | 2.5 ‐ 95 mm² |
| Rated operating voltage | 690 V, 3~ |
| Number of Poles | 3-pole |
| Weight/packaging unit | 1.36 kg |
| Copper weight (kg per piece) | 0.73 |
| Customs tariff number | 85369095 |
| EAN | 4028177668126 |
| ETIM 7.0 | EC001046 |
| ECLASS 8.0 | 27371402 |
